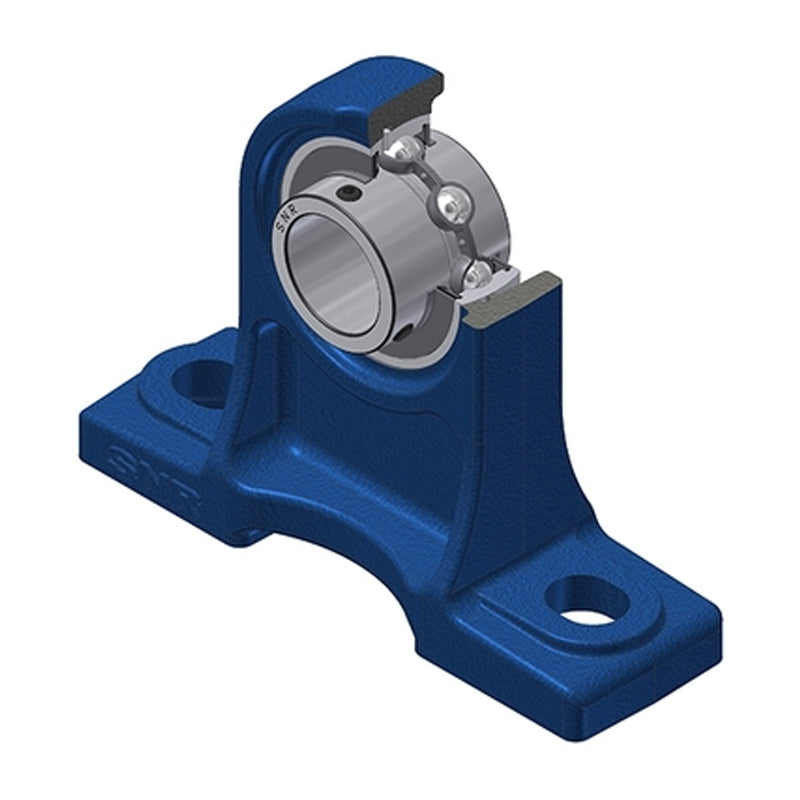

• SNR UCPH209 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCPH209-SNR

SNR UCPH209 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert - Allow 2-3 Days

SNR UCPH209 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert - Allow 2-3 Days
$53.79 ex VAT
$53.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $36.03
4+ $34.01
9+ $33.60
19+ $33.20
49+ $32.79
99+ $32.39
499+ $30.36
999+ $29.96
1999+ $29.55
2999+ $29.15
4999+ $28.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
UCPH
Bolt Hole Centres:
49.2mm
Technical
--- Dimensions
Shaft diameter 45mm
A 70mm
A1 36mm
B 49.2mm
H 105mm
H1 20mm
H2 157mm
J 146mm
L 190mm
L1 62mm
N 17mm
N1 25mm
S 19mm
G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 3.08 kg
