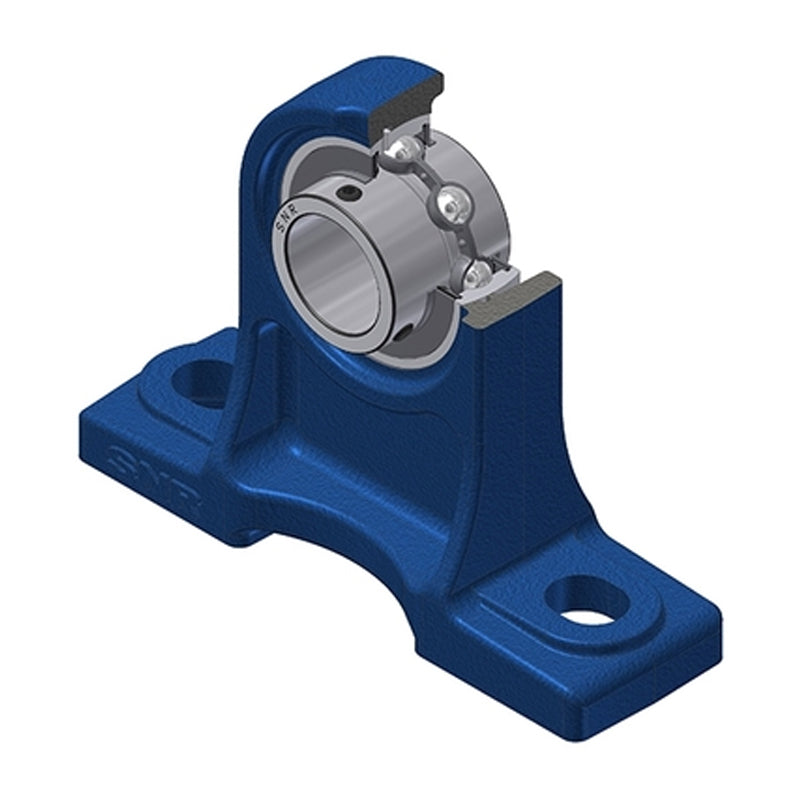

• SNR UCPH210 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCPH210-SNR

SNR UCPH210 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days

SNR UCPH210 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
$64.04 ex VAT
$64.04 ex VAT
Sale Sold out

In stock

Price Break
3+ $42.89
4+ $40.48
9+ $40.00
19+ $39.52
49+ $39.04
99+ $38.56
499+ $36.15
999+ $35.66
1999+ $35.18
2999+ $34.70
4999+ $33.74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
UCPH
Bolt Hole Centres:
51.6mm
Technical
--- Dimensions
Shaft diameter 50mm
A 70mm
A1 36mm
B 51.6mm
H 110mm
H1 22mm
H2 165mm
J 159mm
L 206mm
L1 65mm
N 20mm
N1 25mm
S 19mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.6 kg
