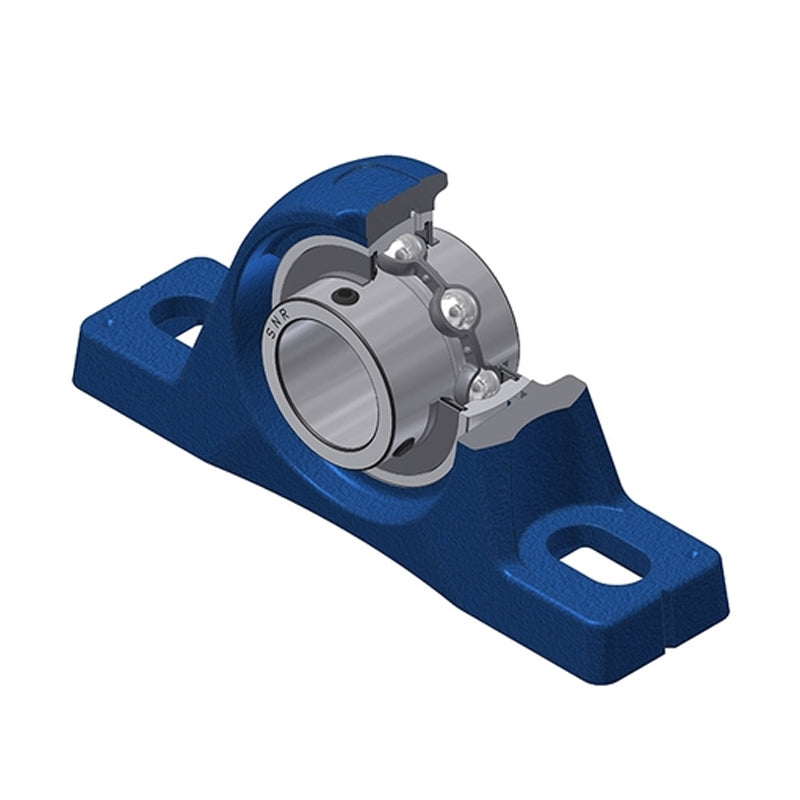

SNR UCPLE202 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 15mm Bore Insert - Allow 2-3 Days
SNR UCPLE202 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 15mm Bore Insert - Allow 2-3 Days
Regular price
$26.50
ex VAT
Regular price
Sale price
$26.50
ex VAT
In stock
Price Break
3+
$19.74
4+
$18.94
9+
$18.54
19+
$17.95
49+
$17.55
99+
$16.55
499+
$13.96
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCPLE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 15mm
- Style:
- UCPLE
- Bolt Hole Centres:
- 94.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 15mm |
| A | 32mm |
| A1 | 22.5mm |
| B | 31mm |
| H | 31.8mm |
| H1 | 12.5mm |
| H2 | 63.7mm |
| J | 94.5mm |
| L | 126.5mm |
| N | 11mm |
| N1 | 17mm |
| S | 12.7mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.7 kg |
