SKU: UCPLE206N-SNR

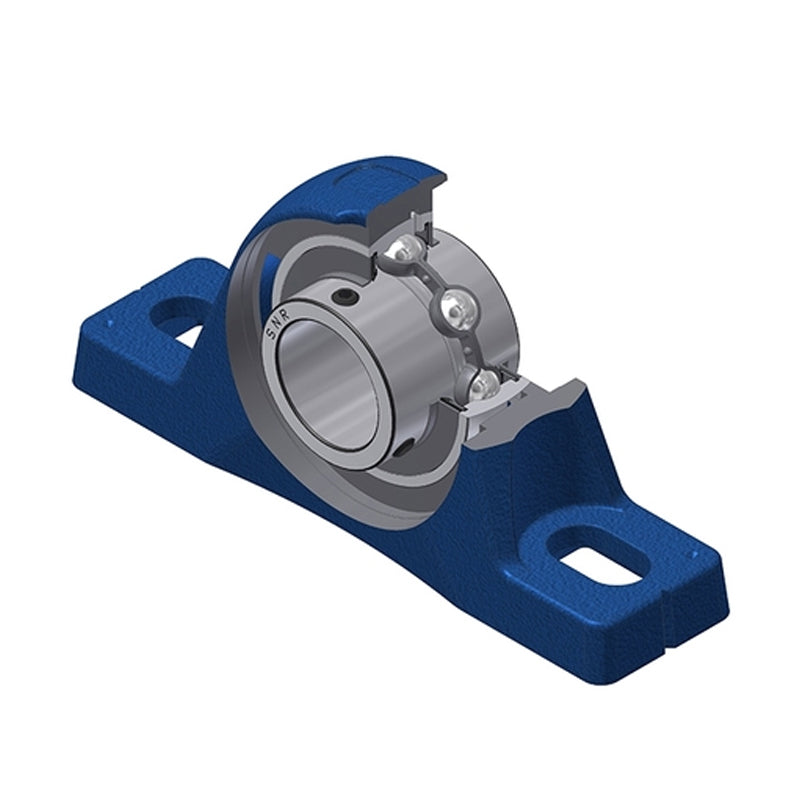

SNR UCPLE206N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert - Allow 2-3 Days

SNR UCPLE206N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert - Allow 2-3 Days
Regular price $117.85 ex VAT
Regular price Sale price $117.85 ex VAT
Sale Sold out

In stock

Price Break
3+ $87.79
4+ $84.25
9+ $82.47
19+ $79.81
49+ $78.04
99+ $73.60
499+ $62.08
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 30mm
A 41.5mm
A1 27.5mm
B 38.1mm
H 39.7mm
H1 14.5mm
H2 79.5mm
J 119mm
L 161.5mm
N 14mm
N1 24.5mm
S 15.9mm
G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.92 kg
