SKU: UCPLE207N-SNR

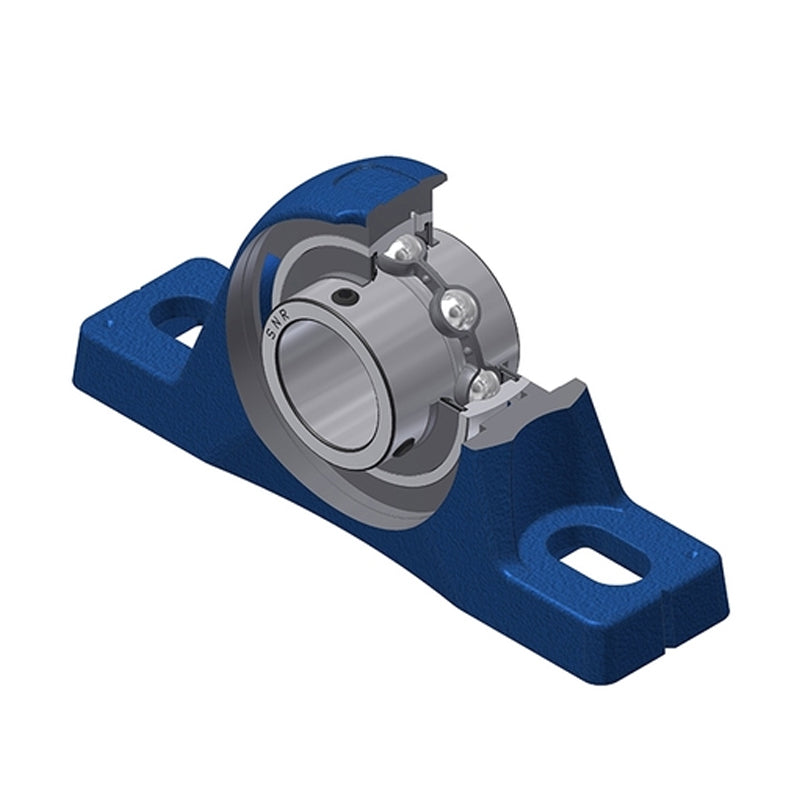

SNR UCPLE207N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert - Allow 2-3 Days

SNR UCPLE207N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert - Allow 2-3 Days
Regular price $103.07 ex VAT
Regular price Sale price $103.07 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.78
4+ $73.68
9+ $72.13
19+ $69.80
49+ $68.25
99+ $64.37
499+ $54.29
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 35mm
A 44.5mm
A1 30.5mm
B 42.9mm
H 46.2mm
H1 16mm
H2 91.5mm
J 129mm
L 166mm
N 14mm
N1 21.5mm
S 17.5mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.37 kg
