SKU: UCPLE208CC-SNR

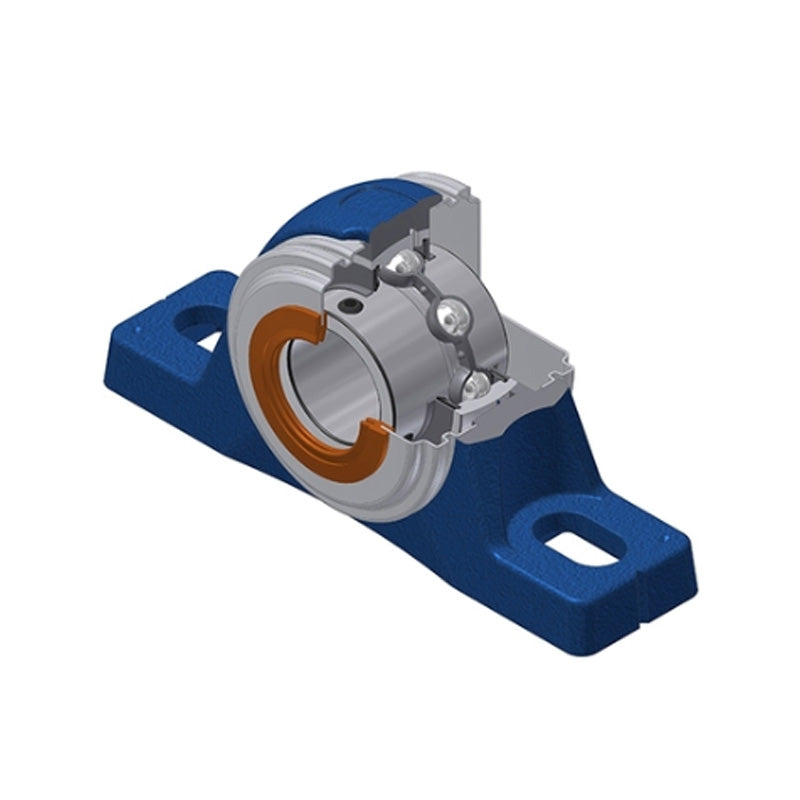

SNR UCPLE208CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCPLE208CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price $117.79 ex VAT
Regular price Sale price $117.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $87.75
4+ $84.21
9+ $82.44
19+ $79.78
49+ $78.00
99+ $73.57
499+ $62.05
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 40mm
A 51mm
A1 34.5mm
B 49.2mm
H 49.2mm
H1 18.5mm
H2 98.5mm
J 137.5mm
L 180.5mm
N 14mm
N1 24.5mm
S 19mm
Dz 88mm
Z 70.3mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.89 kg
