SKU: UCPLE210CC-SNR

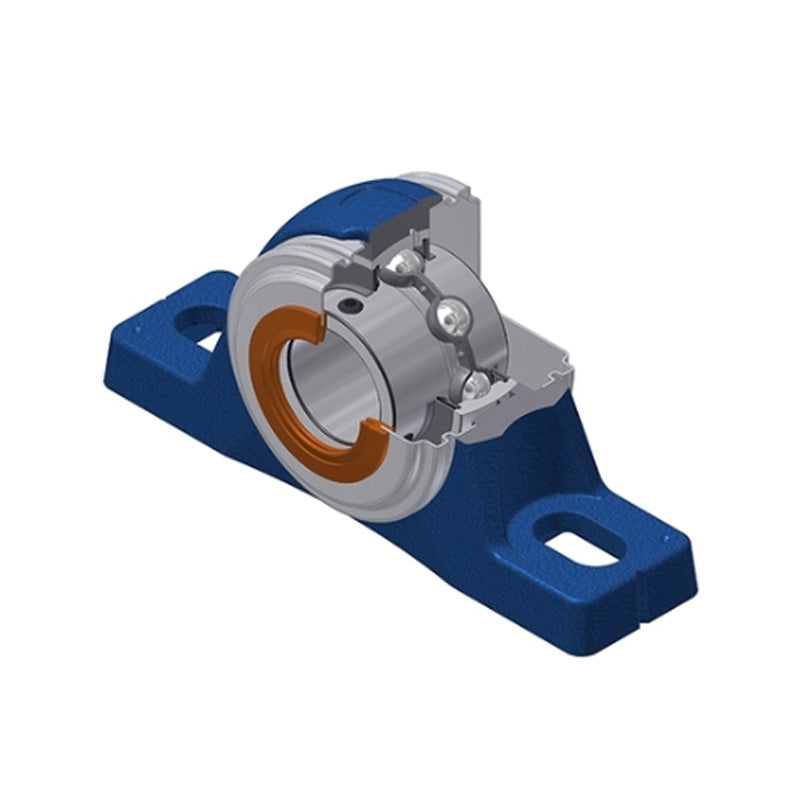

SNR UCPLE210CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCPLE210CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price $132.58 ex VAT
Regular price Sale price $132.58 ex VAT
Sale Sold out

In stock

Price Break
3+ $98.77
4+ $94.78
9+ $92.79
19+ $89.79
49+ $87.80
99+ $82.81
499+ $69.84
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 50mm
A 55mm
A1 36mm
B 51.6mm
H 55.6mm
H1 19.3mm
H2 114mm
J 164mm
L 214mm
N 14mm
N1 27mm
S 19mm
Dz 100mm
Z 77.1mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 2.73 kg
