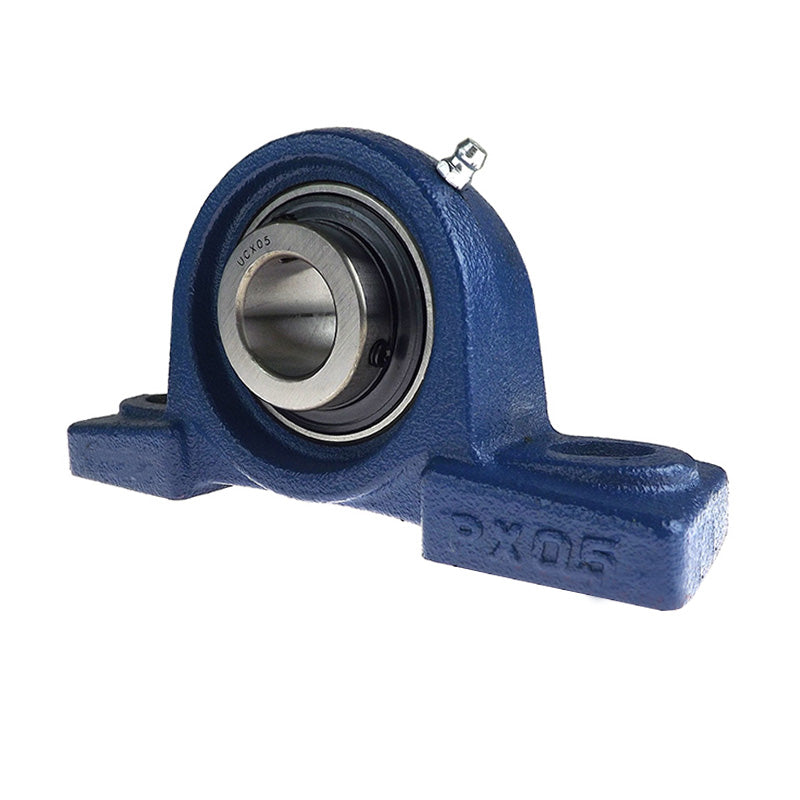

• Challenge / FK UCPX05-16 Imperial Cast Iron Two Bolt Pillow Block Housing with 1 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
1 1

SKU: UCPX.05-16.TS.CHAL

Challenge / FK UCPX05-16 Imperial Cast Iron Two Bolt Pillow Block Housing with 1 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UCPX05-16 Imperial Cast Iron Two Bolt Pillow Block Housing with 1 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$50.28 ex VAT
$50.28 ex VAT
Sale Sold out

Equivalent to: UCPX.05-16

In stock

Price Break
3+ $33.68
5+ $31.79
9+ $31.41
19+ $31.03
49+ $30.65
74+ $30.27
99+ $28.38
199+ $28.00
249+ $27.62
499+ $27.25
999+ $26.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Challenge / FK - Good Quality
Inside Diameter:
25.4mm = 1 inch
Style:
UCPX
Bolt Hole Centres:
119mm
Technical
Shaft Diameter d 1 inch
Casting Centre Line Height h 44.4mm
Casting Length a 159mm
Recommended Bolt Centres l 119mm
Casting Width b 51mm
Slot Length s<sub>2</sub> 25mm
Slot Width s<sub>1</sub> 17mm
Foot Height g 18mm
Overall Height w 85mm
Bearing Insert Width Bi 38.1mm
Back of Bearing to Centre Line n 15.9mm
Bolt Size 1/2 inch
Grub Screws x 2 1/4 - 28UNF inch
Load Rating (Dynamic) 1520kg
Load Rating (Static) 1020kg
Max Speed 3400 rev/min
Working Temperature -30&deg;C to +120&deg;C
Insert No UCX05-16
Housing No PX05
