SKU: UCPX.08
UCPX08 Metric Two Bolt Cast Iron Pillow / Plummer Block Housing with 40mm Bore Insert
UCPX08 Metric Two Bolt Cast Iron Pillow / Plummer Block Housing with 40mm Bore Insert
Regular price
$43.83
ex VAT
Regular price
Sale price
$43.83
ex VAT
Equivalent to: MP40
In stock
Price Break
3+
$29.36
4+
$27.71
9+
$27.38
19+
$27.05
49+
$26.72
99+
$26.39
499+
$24.74
999+
$24.41
1999+
$24.08
2999+
$23.75
4999+
$23.09
Quantity
Couldn't load pickup availability
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- UCPX
- Bolt Hole Centres:
- 156mm

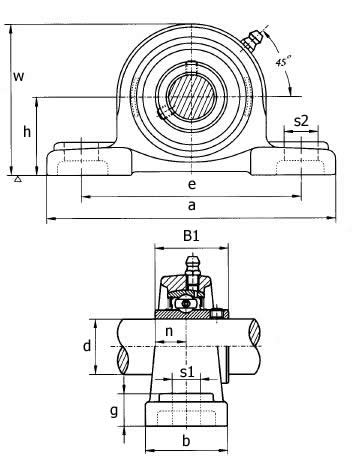

Technical
Technical
| d | 40mm |
|---|---|
| h | 58.7mm |
| a | 222mm |
| e | 156mm |
| b | 67mm |
| s2 | 32mm |
| s1 | 20mm |
| g | 26mm |
| w | 113mm |
| B1 | 49.2mm |
| n | 19mm |
| Bolt Size | M16 |
| Weight | 3.5 kg |
| Dynamic load | 2650 kgf |
| Static load | 1910 kgf |
| Rec max speed | 3700 rpm |
