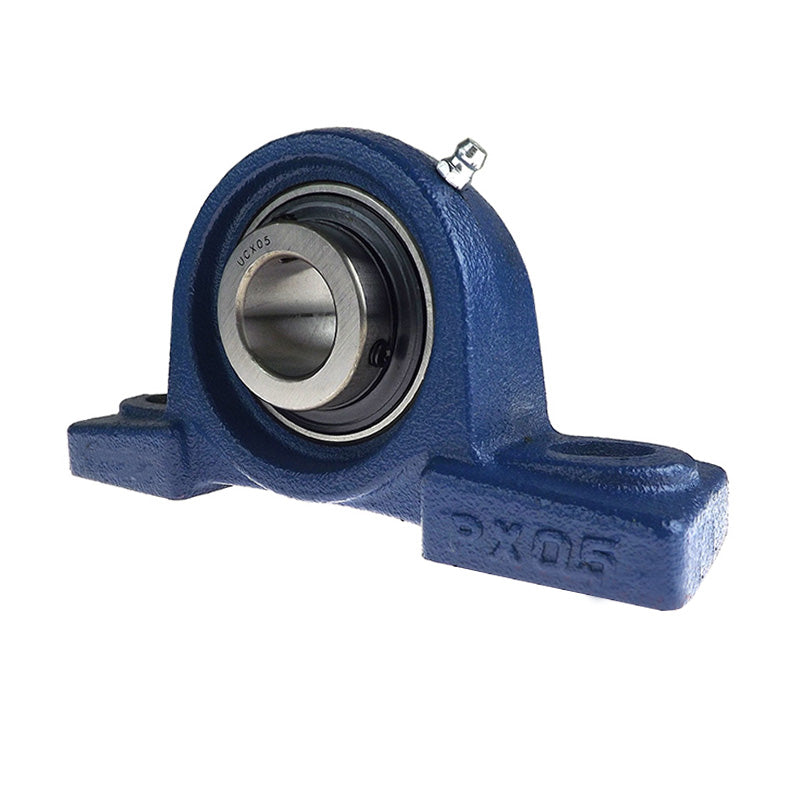

• Challenge / FK UCPX08-24 Imperial Cast Iron Two Bolt Pillow Block Housing with 1-1/2 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
1 1

SKU: UCPX.08-24.TS.CHAL

Challenge / FK UCPX08-24 Imperial Cast Iron Two Bolt Pillow Block Housing with 1-1/2 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UCPX08-24 Imperial Cast Iron Two Bolt Pillow Block Housing with 1-1/2 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$98.18 ex VAT
$98.18 ex VAT
Sale Sold out

Equivalent to: UCPX.08-24

In stock

Price Break
3+ $65.77
5+ $62.07
9+ $61.33
19+ $60.59
49+ $59.85
74+ $59.12
99+ $55.42
199+ $54.68
249+ $53.94
499+ $53.20
999+ $51.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Challenge / FK - Good Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
UCPX
Bolt Hole Centres:
156mm
Technical
Shaft Diameter d 1-1/2 inch
Casting Centre Line Height h 58.7mm
Casting Length a 222mm
Recommended Bolt Centres l 156mm
Casting Width b 67mm
Slot Length s<sub>2</sub> 32mm
Slot Width s<sub>1</sub> 20mm
Foot Height g 26mm
Overall Height w 113mm
Bearing Insert Width Bi 49.2mm
Back of Bearing to Centre Line n 19mm
Bolt Size 5/8 inch
Grub Screws x 2 5/16 - 24UNF inch
Load Rating (Dynamic) 2650kg
Load Rating (Static) 1910kg
Max Speed 2200 rev/min
Working Temperature -30&deg;C to +120&deg;C
Insert No UCX08-24
Housing No PX08
