• NTN UCPX07D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert - Allow 2-3 Days
  • NTN
1 2

SKU: UCPX07D1-NTN

NTN UCPX07D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert - Allow 2-3 Days

NTN UCPX07D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert - Allow 2-3 Days
$47.35 ex VAT
$47.35 ex VAT
Sale Sold out

In stock

Price Break
3+ $31.72
4+ $29.94
9+ $29.58
19+ $29.22
49+ $28.87
99+ $28.51
499+ $26.73
999+ $26.37
1999+ $26.02
2999+ $25.66
4999+ $24.95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Style:
UCPX
Bolt Hole Centres:
144mm
Technical

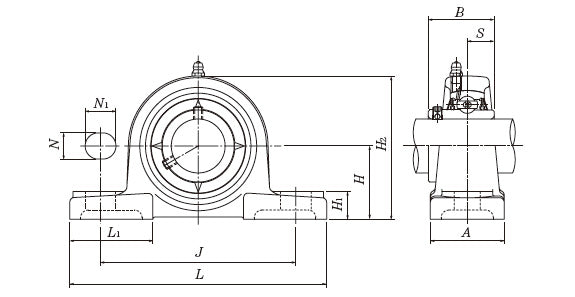

--- Dimensions
Shaft diameter 35mm
H 54mm
L 203mm
J 144mm
A 57mm
N 17mm
N<sub>1</sub> 20mm
H<sub>1</sub> 21mm
H<sub>2</sub> 105mm
L<sub>1</sub> 60mm
B 49.2mm
S 19mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 32.5 kN
Static load C<sub>0r</sub> 17.8 kN
Fatigue load limit C<sub>u</sub> 1.24 kN
--- Unit information
Mass 2.4 kg
