SKU: UCPX08D1-NTN

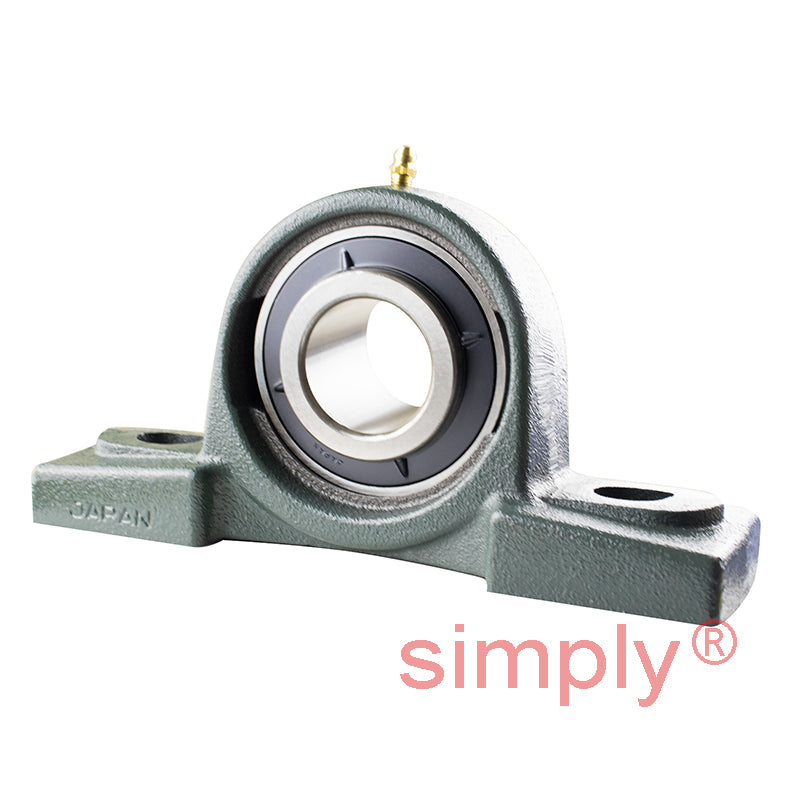

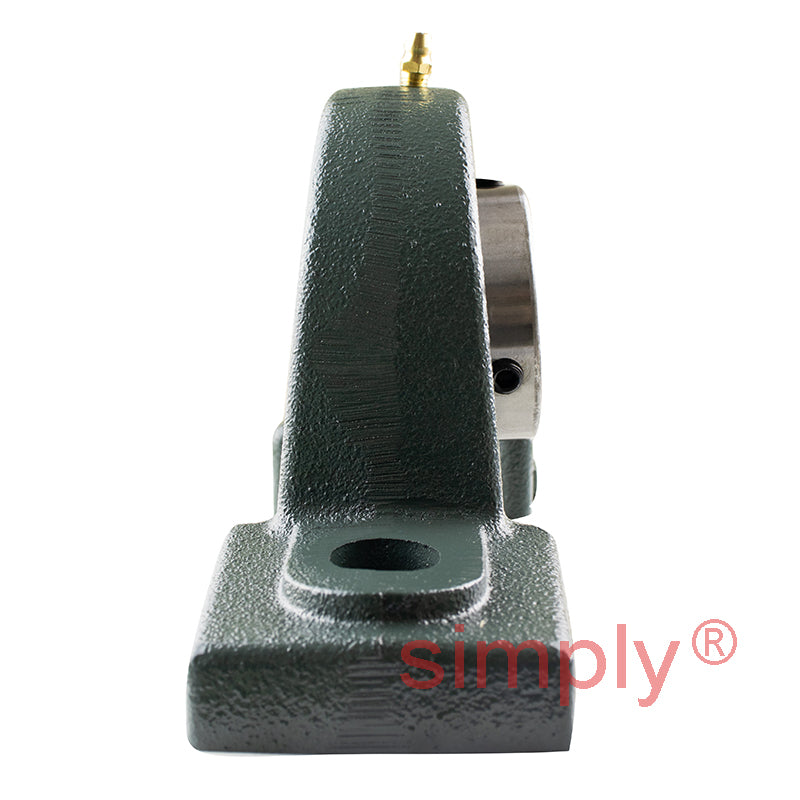

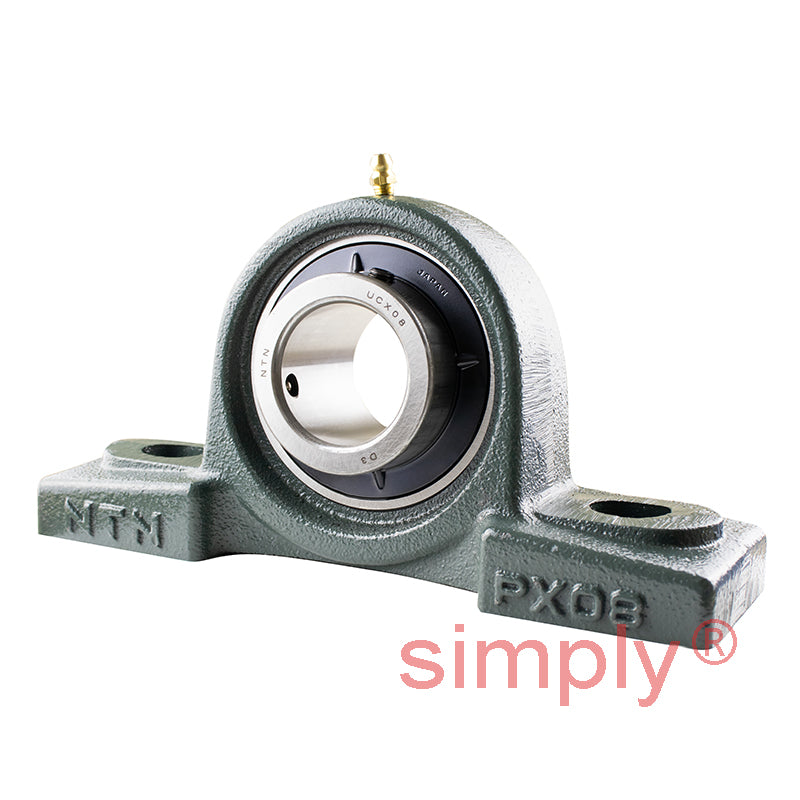

NTN UCPX08D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert
NTN UCPX08D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert
Regular price
$55.41
ex VAT
Regular price
Sale price
$55.41
ex VAT
In stock
Price Break
3+
$37.11
4+
$35.03
9+
$34.61
19+
$34.19
49+
$33.78
99+
$33.36
499+
$31.28
999+
$30.86
1999+
$30.44
2999+
$30.02
4999+
$29.19
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCPX
- Bolt Hole Centres:
- 156mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| H | 58.7mm |
| L | 222mm |
| J | 156mm |
| A | 67mm |
| N | 20mm |
| N<sub>1</sub> | 23mm |
| H<sub>1</sub> | 26mm |
| H<sub>2</sub> | 111mm |
| L<sub>1</sub> | 65mm |
| B | 49.2mm |
| S | 19mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 36 kN |
| Static load C<sub>0r</sub> | 20.4 kN |
| Fatigue load limit C<sub>u</sub> | 1.6 kN |
| --- | Unit information |
| Mass | 2.9 kg |
