SKU: UCPX09D1-NTN

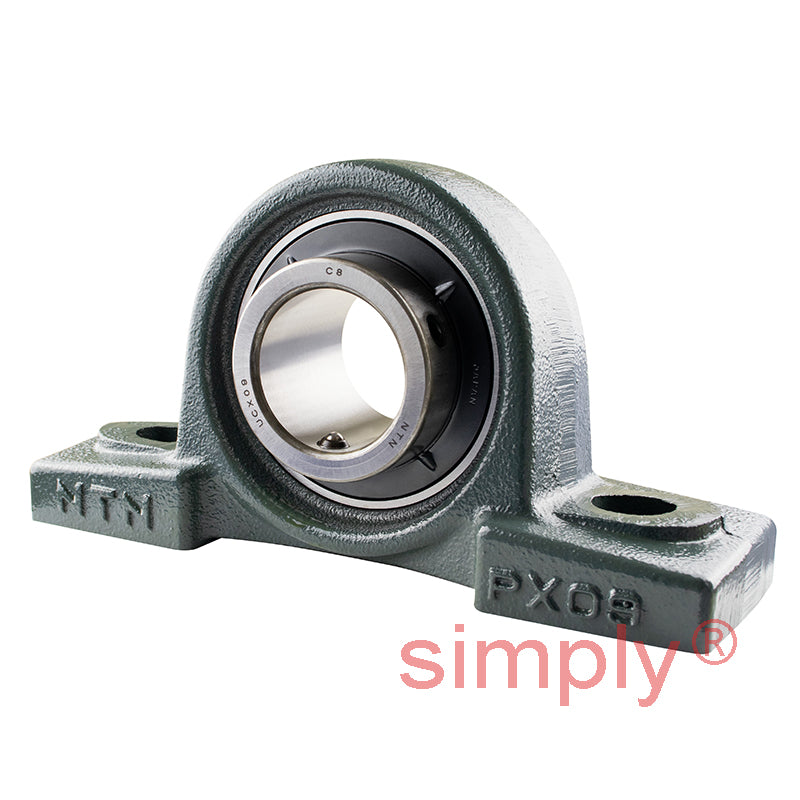

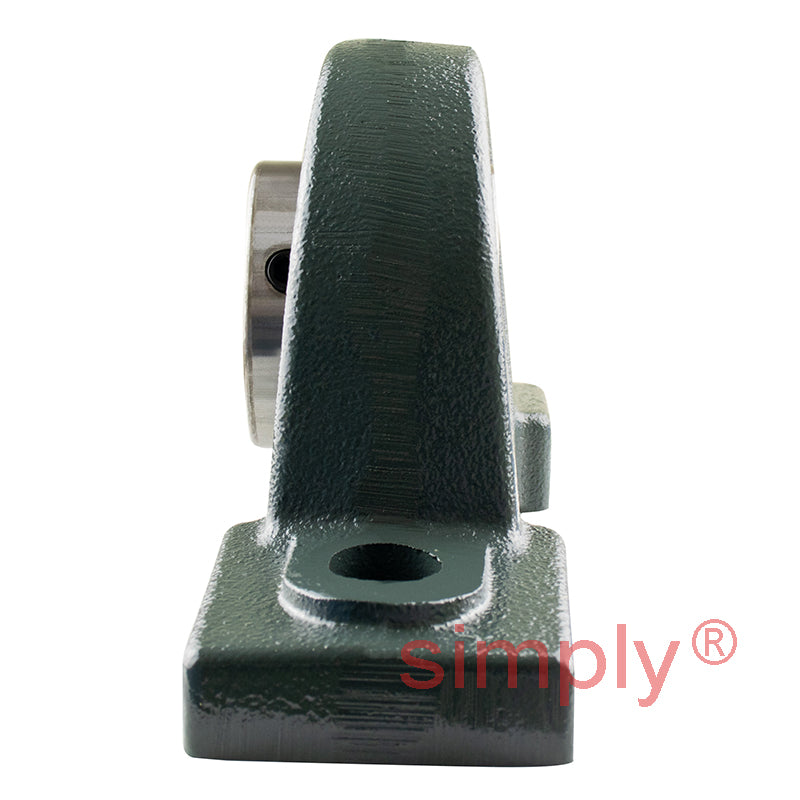

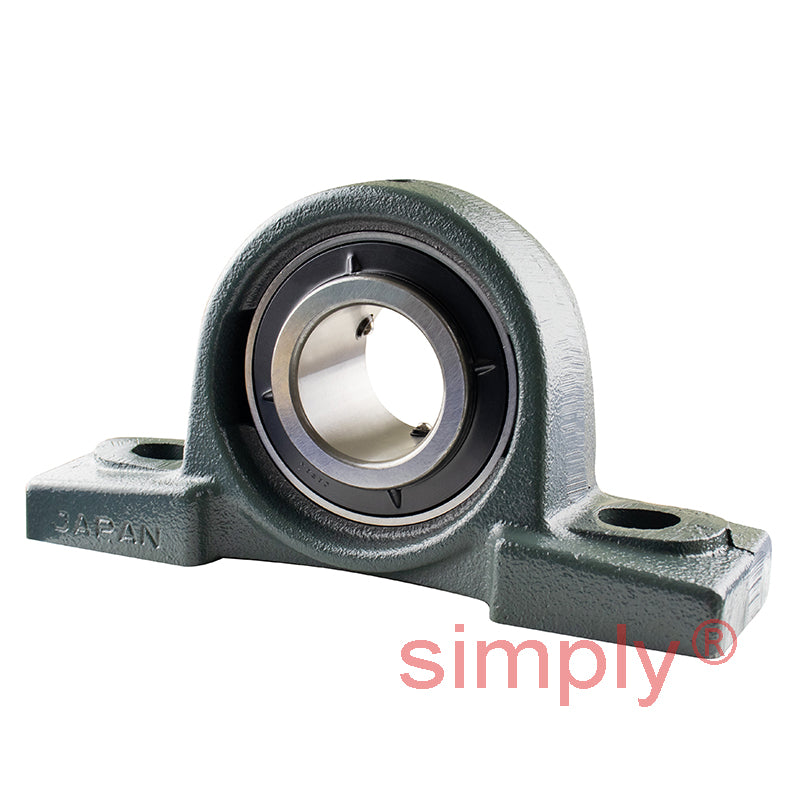

NTN UCPX09D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert
NTN UCPX09D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert
Regular price
$65.96
ex VAT
Regular price
Sale price
$65.96
ex VAT
In stock
Price Break
3+
$44.18
4+
$41.70
9+
$41.20
19+
$40.70
49+
$40.21
99+
$39.71
499+
$37.23
999+
$36.73
1999+
$36.24
2999+
$35.74
4999+
$34.75
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCPX
- Bolt Hole Centres:
- 156mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| H | 58.7mm |
| L | 222mm |
| J | 156mm |
| A | 67mm |
| N | 20mm |
| N<sub>1</sub> | 23mm |
| H<sub>1</sub> | 26mm |
| H<sub>2</sub> | 116mm |
| L<sub>1</sub> | 65mm |
| B | 51.6mm |
| S | 19mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 39 kN |
| Static load C<sub>0r</sub> | 23.2 kN |
| Fatigue load limit C<sub>u</sub> | 1.82 kN |
| --- | Unit information |
| Mass | 3.2 kg |
