SKU: UCPX10D1-NTN

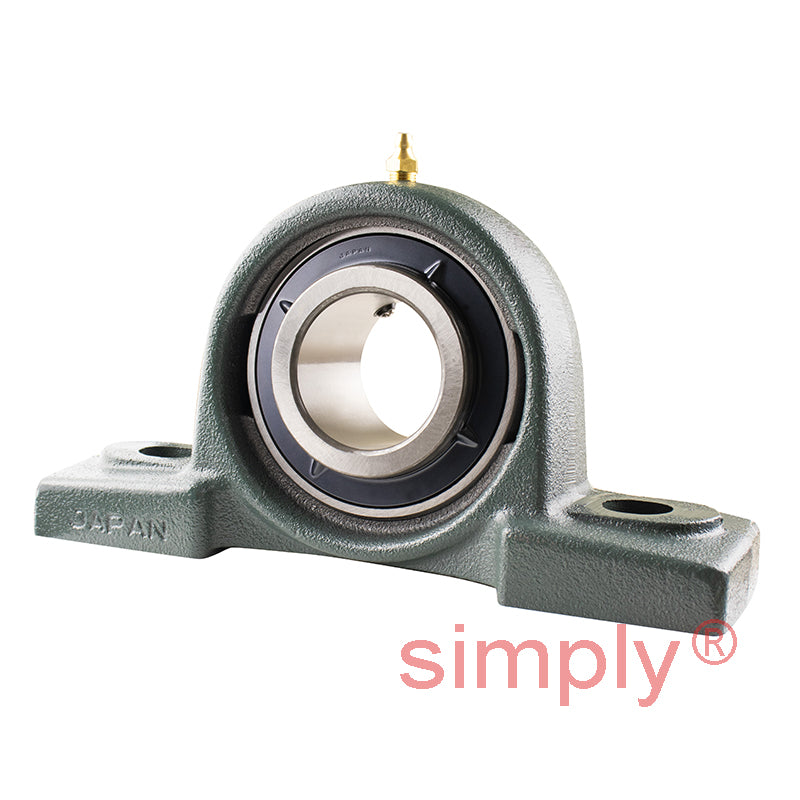

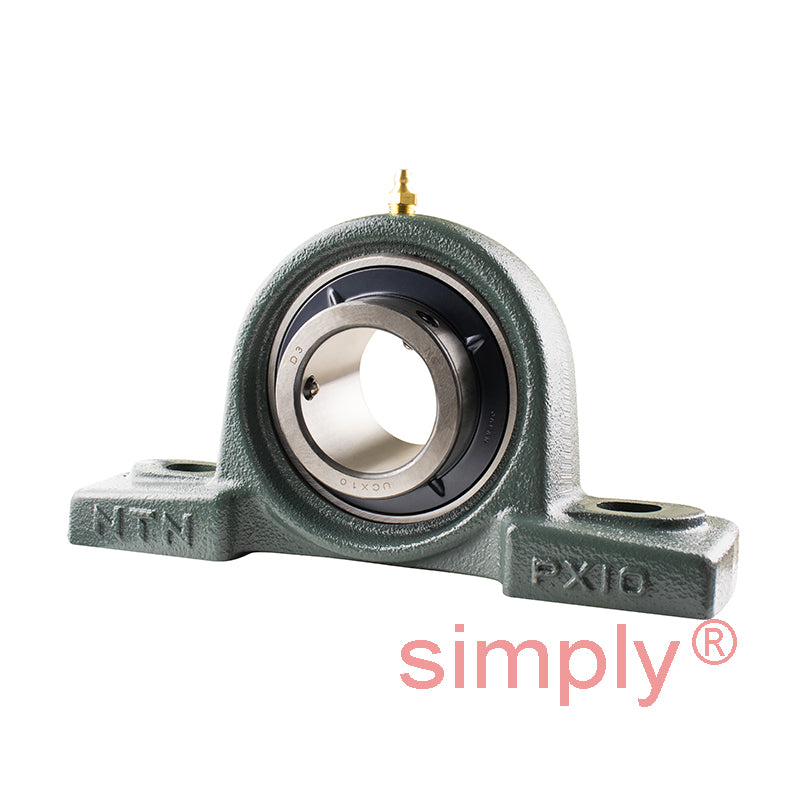

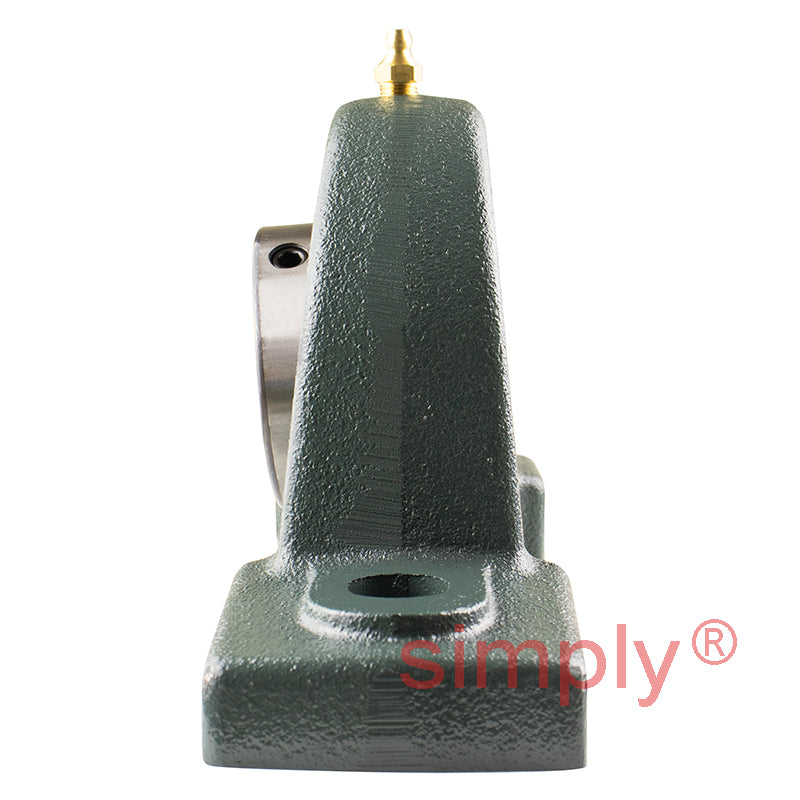

NTN UCPX10D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert
NTN UCPX10D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert
Regular price
$72.56
ex VAT
Regular price
Sale price
$72.56
ex VAT
In stock
Price Break
3+
$48.60
4+
$45.87
9+
$45.33
19+
$44.78
49+
$44.23
99+
$43.69
499+
$40.96
999+
$40.41
1999+
$39.87
2999+
$39.32
4999+
$38.23
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCPX
- Bolt Hole Centres:
- 171mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| H | 63.5mm |
| L | 241mm |
| J | 171mm |
| A | 73mm |
| N | 20mm |
| N<sub>1</sub> | 23mm |
| H<sub>1</sub> | 27mm |
| H<sub>2</sub> | 126mm |
| L<sub>1</sub> | 70mm |
| B | 55.6mm |
| S | 22.2mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 48 kN |
| Static load C<sub>0r</sub> | 29.2 kN |
| Fatigue load limit C<sub>u</sub> | 2.29 kN |
| --- | Unit information |
| Mass | 4.1 kg |
