SKU: UCSP202CC-SNR

SNR UCSP202CC Metric Cast Iron Tensioner Unit with 15mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCSP202CC Metric Cast Iron Tensioner Unit with 15mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price $132.53 ex VAT
Regular price Sale price $132.53 ex VAT
Sale Sold out

In stock

Price Break
3+ $98.73
4+ $94.74
9+ $92.75
19+ $89.76
49+ $87.76
99+ $82.78
499+ $69.81
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

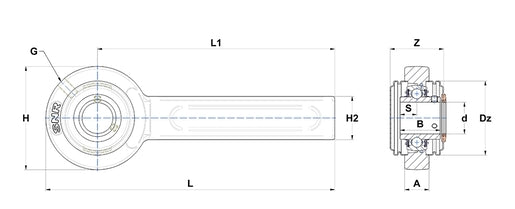

--- Dimensions
Shaft diameter 15mm
A 21mm
B 31mm
H 78mm
H2 41mm
L 264mm
L1 225mm
S 12.7mm
Dz 54mm
Z 45.6mm
G R1/8″
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Stretcher frame 2 SPR11
Stretcher frame 3 SPR12
Stretcher frame 4 SPR14
Mass 1.661 kg
