SKU: UCSP206CC-SNR

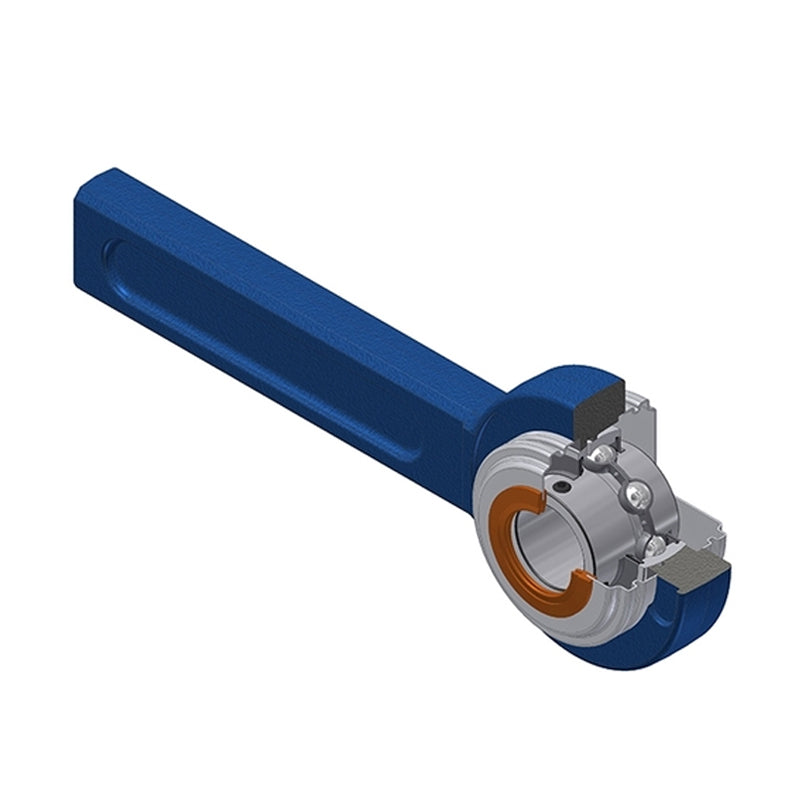

SNR UCSP206CC Metric Cast Iron Tensioner Unit with 30mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCSP206CC Metric Cast Iron Tensioner Unit with 30mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price $176.58 ex VAT
Regular price Sale price $176.58 ex VAT
Sale Sold out

In stock

Price Break
3+ $131.55
4+ $126.24
9+ $123.58
19+ $119.59
49+ $116.93
99+ $110.29
499+ $93.02
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 30mm
A 21mm
B 38.1mm
H 98mm
H2 41mm
L 274mm
L1 225mm
S 15.9mm
Dz 70mm
Z 50.8mm
G R1/8″
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Stretcher frame 2 SPR11
Stretcher frame 3 SPR12
Stretcher frame 4 SPR14
Mass 2.014 kg
