SKU: UCSP207CO-SNR

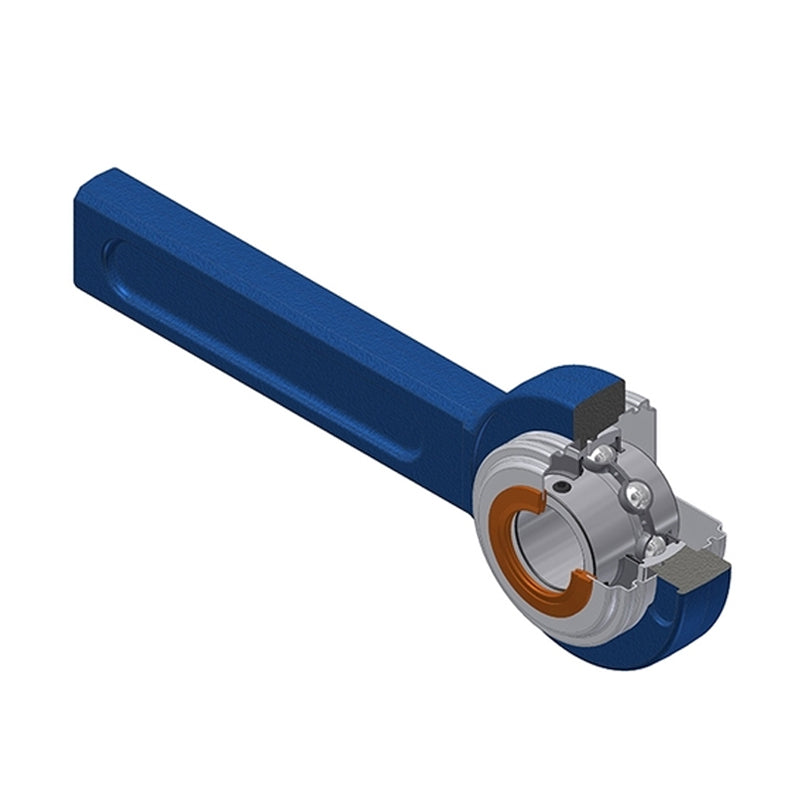

SNR UCSP207CO Metric Cast Iron Tensioner Unit with 35mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
SNR UCSP207CO Metric Cast Iron Tensioner Unit with 35mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
$147.29
ex VAT
Regular price
Sale price
$147.29
ex VAT
In stock
Price Break
3+
$109.73
4+
$105.30
9+
$103.08
19+
$99.76
49+
$97.54
99+
$92.00
499+
$77.59
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCSP200 Series Cast Iron Tensioner Units: These bearing units are supplied with a fully sealed bearing insert fitted in the tensioner housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCSP
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| A | 21mm |
| B | 42.9mm |
| H | 98mm |
| H2 | 41mm |
| L | 274mm |
| L1 | 225mm |
| S | 17.5mm |
| Dz | 80mm |
| Z | 54.4mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Stretcher frame 2 | SPR11 |
| Stretcher frame 3 | SPR12 |
| Stretcher frame 4 | SPR14 |
| Mass | 1.982 kg |
