SKU: UCT.204.TS.CHAL

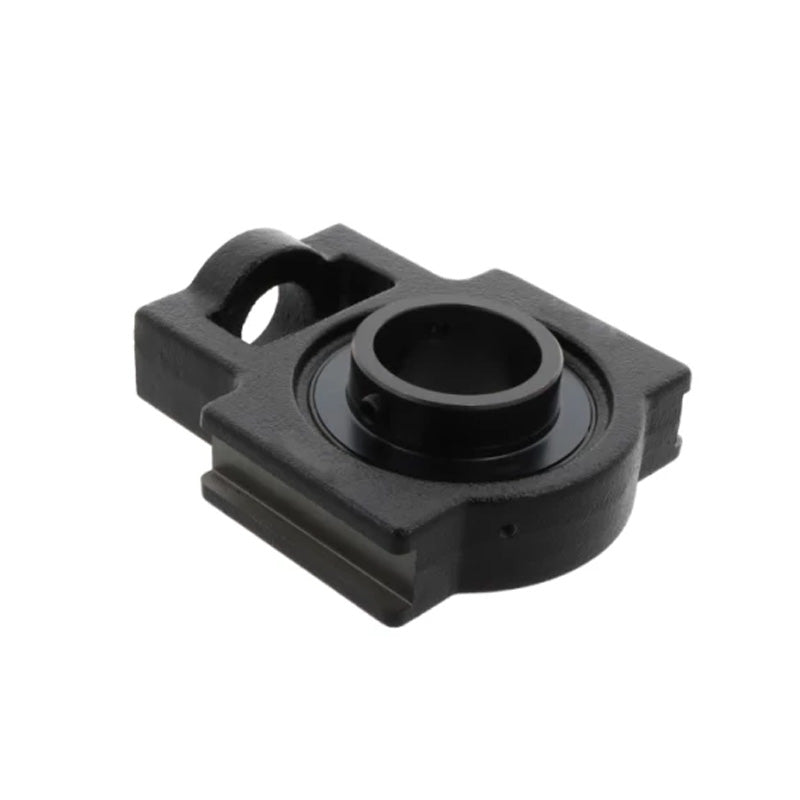

Challenge / FK UCT204 Metric Cast Iron Take Up Unit Housing with 20mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCT204 Metric Cast Iron Take Up Unit Housing with 20mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
$33.04
ex VAT
Regular price
Sale price
$33.04
ex VAT
Equivalent to: UCT.204
In stock
Price Break
3+
$22.13
5+
$20.89
9+
$20.64
19+
$20.39
49+
$20.14
74+
$19.89
99+
$18.65
199+
$18.40
249+
$18.15
499+
$17.90
999+
$17.41
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT Cast Iron Take Up Unit Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 20mm
- Style:
- UCT
Technical
Technical
| Shaft Diameter d | 20mm |
|---|---|
| Nut Slot Width o | 16mm |
| Distance g | 10mm |
| Dimention p | 51mm |
| Dimention q | 32mm |
| Hole s | 19mm |
| Dimention b | 51mm |
| Slot Width k | 12mm |
| Distance Between Slots e | 76mm |
| Overall Casting Depth a | 89mm |
| Width w | 94mm |
| Diameter j | 32mm |
| Casting Width at Slots l | 24mm |
| Dimension h | 61mm |
| Grub Screws x 2 | M6x0.75 |
| Load Rating (Dynamic) | 1000kg |
| Load Rating (Static) | 630kg |
| Max Speed | 4000 rev/min |
| Grease Nipple Thread Size | M6 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC204 |
| Housing No | T204 |
