• UCT205-16 Metric Series Cast Iron Take Up Unit Housing with 1 inch Bore Bearing Unit
1 1

SKU: UCT.205-16

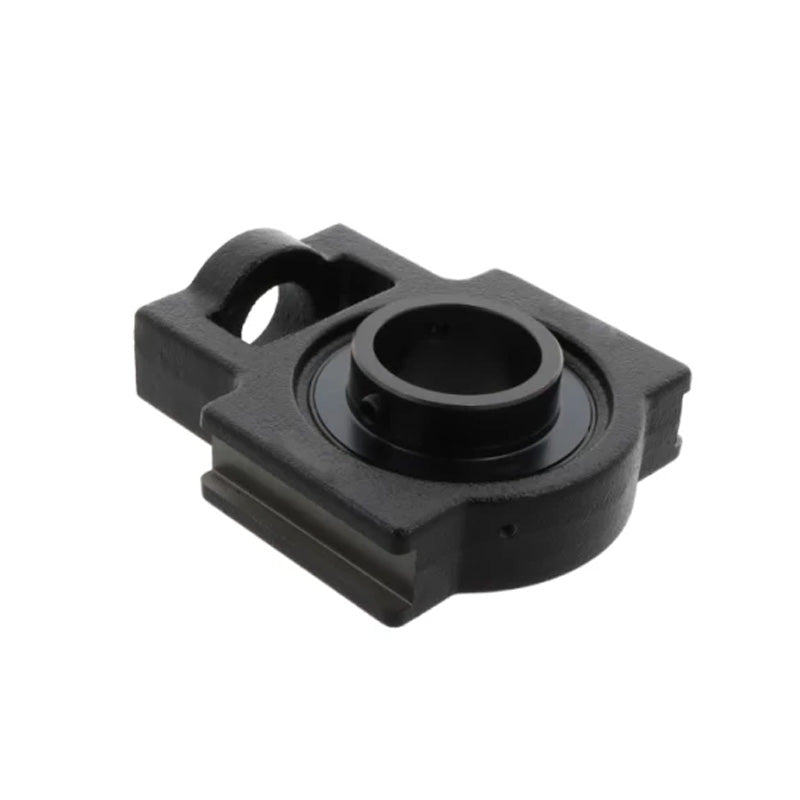

UCT205-16 Metric Series Cast Iron Take Up Unit Housing with 1 inch Bore Bearing Unit

UCT205-16 Metric Series Cast Iron Take Up Unit Housing with 1 inch Bore Bearing Unit
$18.38 ex VAT
$18.38 ex VAT
Sale Sold out

Equivalent to: ST1

In stock

Price Break
3+ $12.31
4+ $11.62
9+ $11.48
19+ $11.34
49+ $11.20
99+ $11.07
499+ $10.37
999+ $10.24
1999+ $10.10
2999+ $9.96
4999+ $9.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25.4mm = 1 inch
Style:
UCT
Technical
d 1 inch
o 16mm
g 10mm
p 51mm
q 32mm
s 19.mm
b 51mm
k 12mm
e 76mm
a 89mm
W 97mm
j 32mm
L 24mm
h 62mm
Bi 34mm
n 14.3mm
Weight 0.83 kg
Dynamic load 1100 kgf
Static load 710 kgf
Rec max speed 6250 rpm
