SKU: UCT.209-28

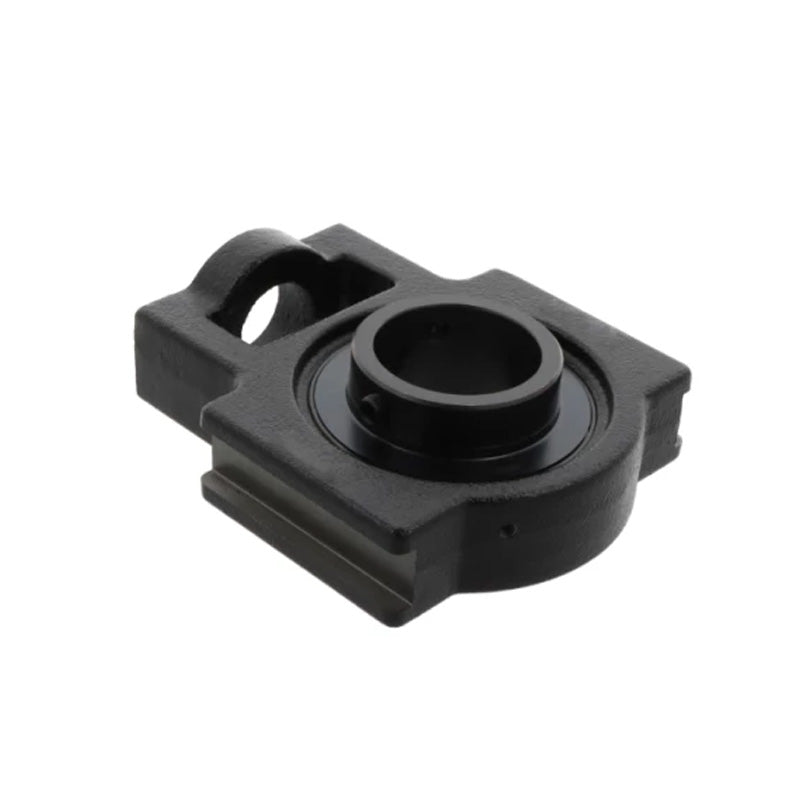

UCT209-28 Metric Series Cast Iron Take Up Unit Housing with 1-3/4 inch Bore Bearing Unit - Allow 2-3 Days
UCT209-28 Metric Series Cast Iron Take Up Unit Housing with 1-3/4 inch Bore Bearing Unit - Allow 2-3 Days
Regular price
$29.42
ex VAT
Regular price
Sale price
$29.42
ex VAT
Equivalent to: ST1-3/4
In stock
Price Break
3+
$21.92
4+
$21.03
9+
$20.59
19+
$19.93
49+
$19.48
99+
$18.38
499+
$15.50
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- UCT
Technical
Technical

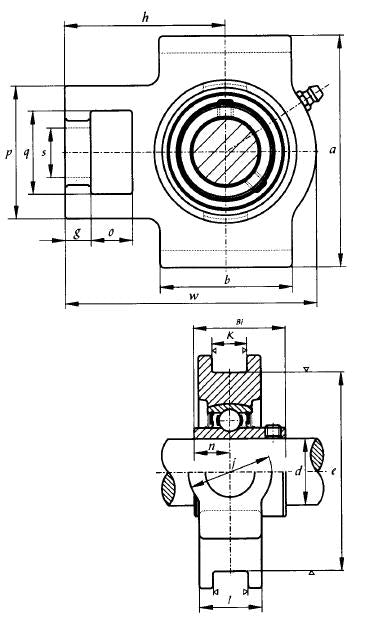

| d | 1-3/4 inch |
|---|---|
| o | 19mm |
| g | 16mm |
| p | 83mm |
| q | 49mm |
| s | 29mm |
| b | 83mm |
| k | 16mm |
| e | 102mm |
| a | 117mm |
| W | 144mm |
| j | 49mm |
| L | 35mm |
| h | 87mm |
| Bi | 49.2mm |
| n | 19mm |
| Weight | 2.4 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 3700 rpm |
