SKU: UCT.209.TS.CHAL

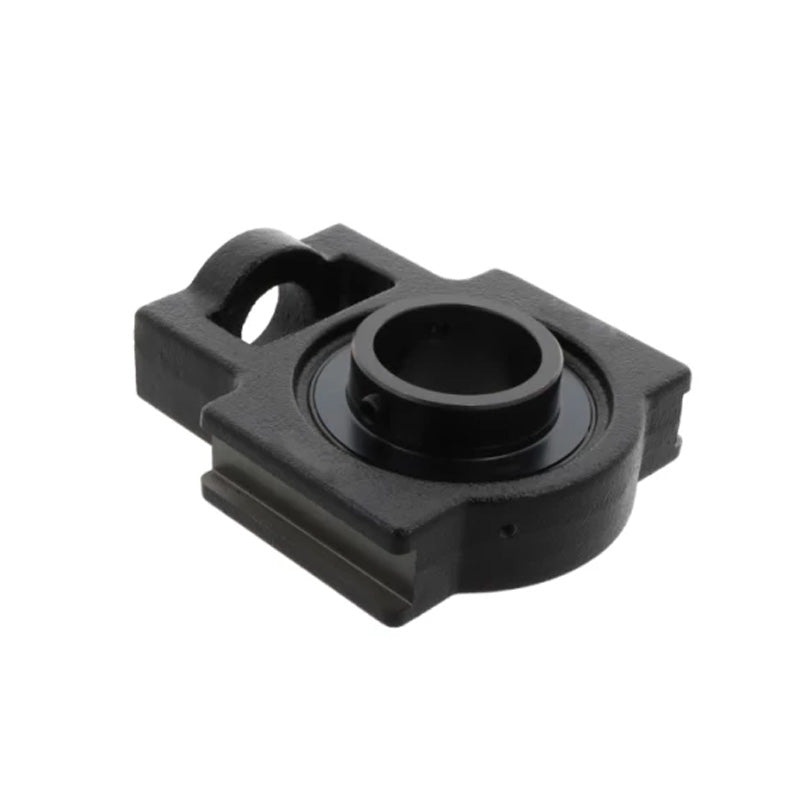

Challenge / FK UCT209 Metric Cast Iron Take Up Unit Housing with 45mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UCT209 Metric Cast Iron Take Up Unit Housing with 45mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price $84.51 ex VAT
Regular price Sale price $84.51 ex VAT
Sale Sold out

Equivalent to: UCT.209

In stock

Price Break
3+ $56.60
5+ $53.42
9+ $52.78
19+ $52.15
49+ $51.51
74+ $50.88
99+ $47.70
199+ $47.06
249+ $46.42
499+ $45.79
999+ $44.52
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Shaft Diameter d 45mm
Nut Slot Width o 19mm
Distance g 16mm
Dimention p 83mm
Dimention q 49mm
Hole s 29mm
Dimention b 83mm
Slot Width k 16mm
Distance Between Slots e 102mm
Overall Casting Depth a 117mm
Width w 144mm
Diameter j 49mm
Casting Width at Slots l 35mm
Dimension h 87mm
Grub Screws x 2 M8x1.0
Load Rating (Dynamic) 2560kg
Load Rating (Static) 1810kg
Max Speed 1900 rev/min
Grease Nipple Thread Size M6
Working Temperature -30°C to +120°C
Insert No UC209
Housing No T209
