SKU: UCT.212.TS.CHAL

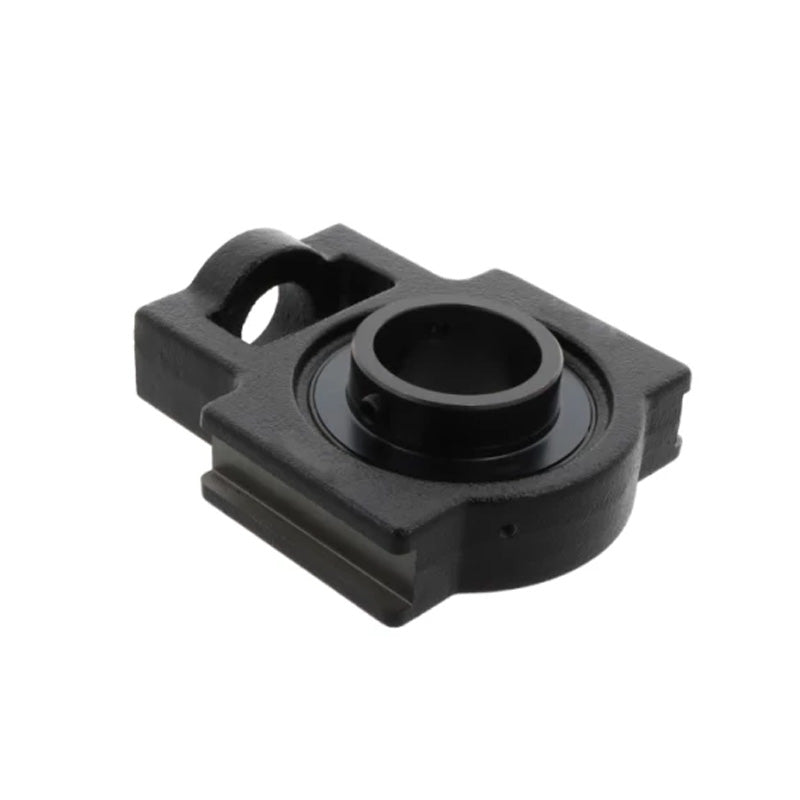

Challenge / FK UCT212 Metric Cast Iron Take Up Unit Housing with 60mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UCT212 Metric Cast Iron Take Up Unit Housing with 60mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price $163.58 ex VAT
Regular price Sale price $163.58 ex VAT
Sale Sold out

Equivalent to: UCT.212

In stock

Price Break
3+ $109.57
5+ $103.41
9+ $102.18
19+ $100.95
49+ $99.72
74+ $98.49
99+ $92.33
199+ $91.10
249+ $89.87
499+ $88.64
999+ $86.18
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Shaft Diameter d 60mm
Nut Slot Width o 32mm
Distance g 19mm
Dimention p 102mm
Dimention q 64mm
Hole s 35mm
Dimention b 102mm
Slot Width k 22mm
Distance Between Slots e 130mm
Overall Casting Depth a 146mm
Width w 194mm
Diameter j 64mm
Casting Width at Slots l 46mm
Dimension h 119mm
Grub Screws x 2 M10x1.25
Load Rating (Dynamic) 4100kg
Load Rating (Static) 3150kg
Max Speed 1500 rev/min
Grease Nipple Thread Size M8
Working Temperature -30°C to +120°C
Insert No UC212
Housing No T212
