SKU: UCT204-12-SNR

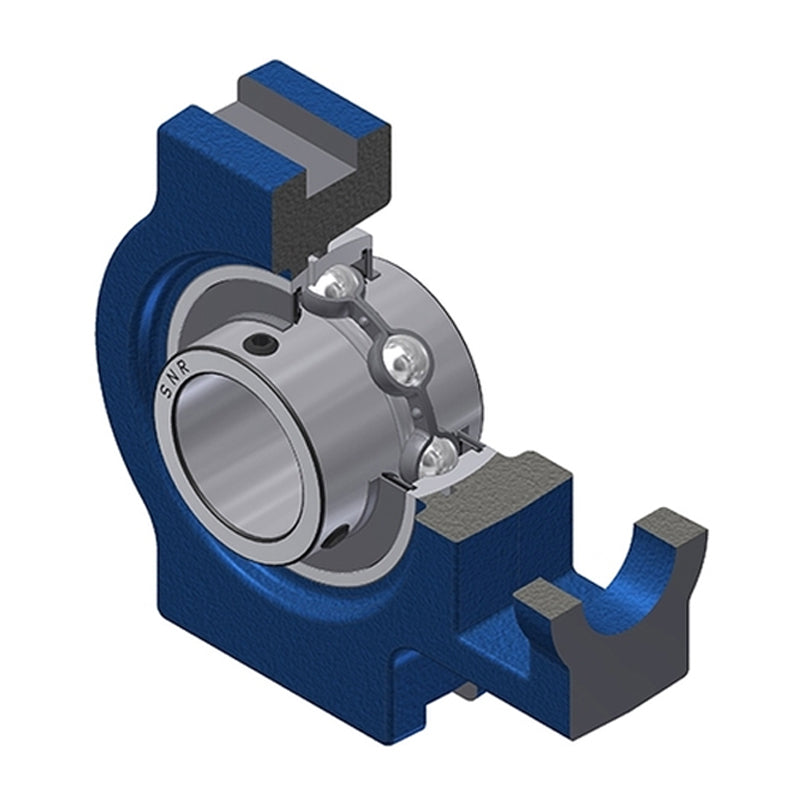

SNR UCT204-12 Imperial Cast Iron Take Up Unit with 3/4 inch Bore Bearing Unit - Allow 2-3 Days

SNR UCT204-12 Imperial Cast Iron Take Up Unit with 3/4 inch Bore Bearing Unit - Allow 2-3 Days
$31.30 ex VAT
$31.30 ex VAT
Sale Sold out

In stock

Price Break
3+ $20.97
4+ $19.79
9+ $19.56
19+ $19.32
49+ $19.09
99+ $18.85
499+ $17.67
999+ $17.44
1999+ $17.20
2999+ $16.96
4999+ $16.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Style:
UCT
Technical
--- Dimensions
Shaft diameter d 3/4 inch
A 32mm
A1 12mm
A2 21mm
B 31mm
H 89mm
H1 76mm
H2 51mm
L 94mm
L1 61mm
L2 10mm
L3 51mm
N 19mm
N1 16mm
N2 32mm
S 12.7mm
G M6x1
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 0.77 kg
