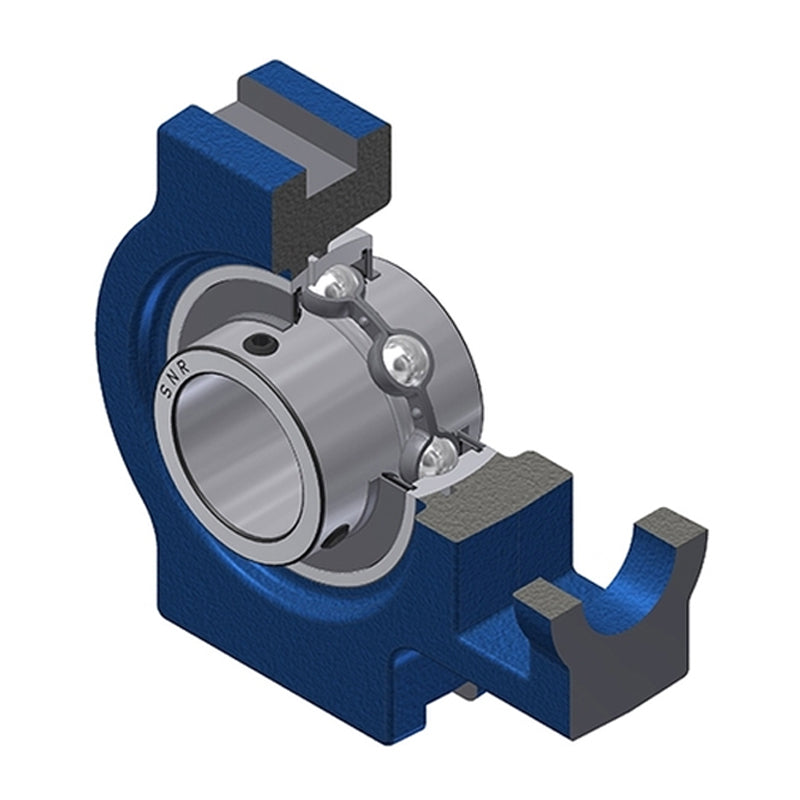

• SNR UCT207-20 Imperial Cast Iron Take Up Unit with 1-1/4 inch Bore Bearing Unit - Allow 2-3 Days
  • SNR
1 2

SKU: UCT207-20-SNR

SNR UCT207-20 Imperial Cast Iron Take Up Unit with 1-1/4 inch Bore Bearing Unit - Allow 2-3 Days

SNR UCT207-20 Imperial Cast Iron Take Up Unit with 1-1/4 inch Bore Bearing Unit - Allow 2-3 Days
$48.67 ex VAT
$48.67 ex VAT
Sale Sold out

In stock

Price Break
3+ $32.60
4+ $30.77
9+ $30.40
19+ $30.04
49+ $29.67
99+ $29.30
499+ $27.47
999+ $27.10
1999+ $26.74
2999+ $26.37
4999+ $25.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
UCT
Technical
--- Dimensions
Shaft diameter d 1-1/4 inch
A 37mm
A1 12mm
A2 30mm
B 42.9mm
H 102mm
H1 89mm
H2 64mm
L 129mm
L1 78mm
L2 13mm
L3 64mm
N 22mm
N1 16mm
N2 37mm
S 17.5mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 1.63 kg
