SKU: UCT208-24-SNR

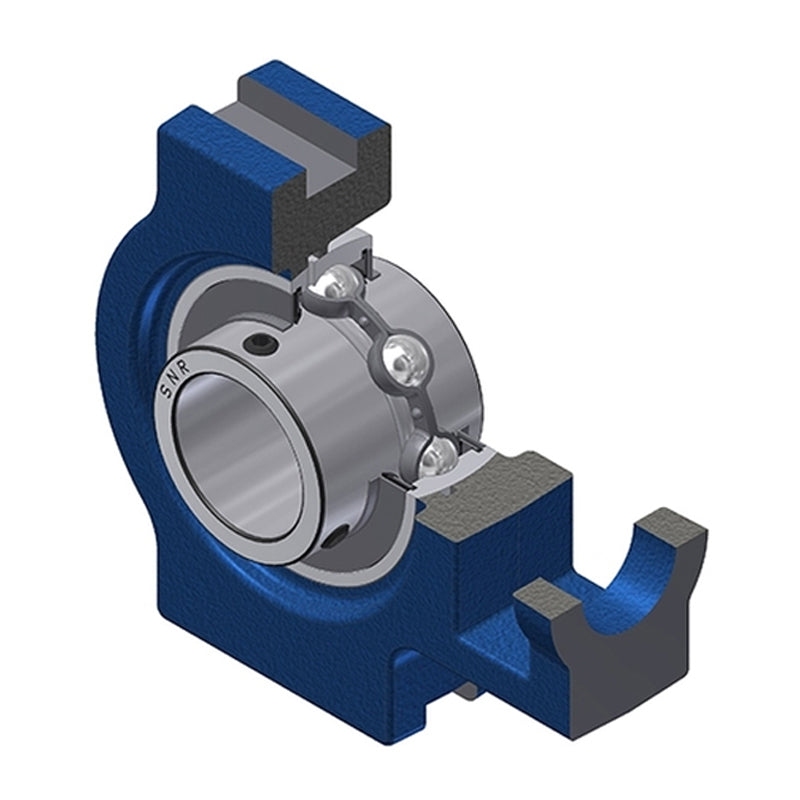

SNR UCT208-24 Imperial Cast Iron Take Up Unit with 1-1/2 inch Bore Bearing Unit - Allow 2-3 Days

SNR UCT208-24 Imperial Cast Iron Take Up Unit with 1-1/2 inch Bore Bearing Unit - Allow 2-3 Days
$51.23 ex VAT
$51.23 ex VAT
Sale Sold out

In stock

Price Break
3+ $34.31
4+ $32.39
9+ $32.00
19+ $31.62
49+ $31.23
99+ $30.84
499+ $28.92
999+ $28.53
1999+ $28.15
2999+ $27.76
4999+ $26.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
UCT
Technical
--- Dimensions
Shaft diameter d 1-1/2 inch
A 49mm
A1 16mm
A2 33mm
B 49.2mm
H 114mm
H1 102mm
H2 83mm
L 144mm
L1 88mm
L2 16mm
L3 83mm
N 29mm
N1 19mm
N2 49mm
S 19mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 2.38 kg
