SKU: UCT208T20-SNR

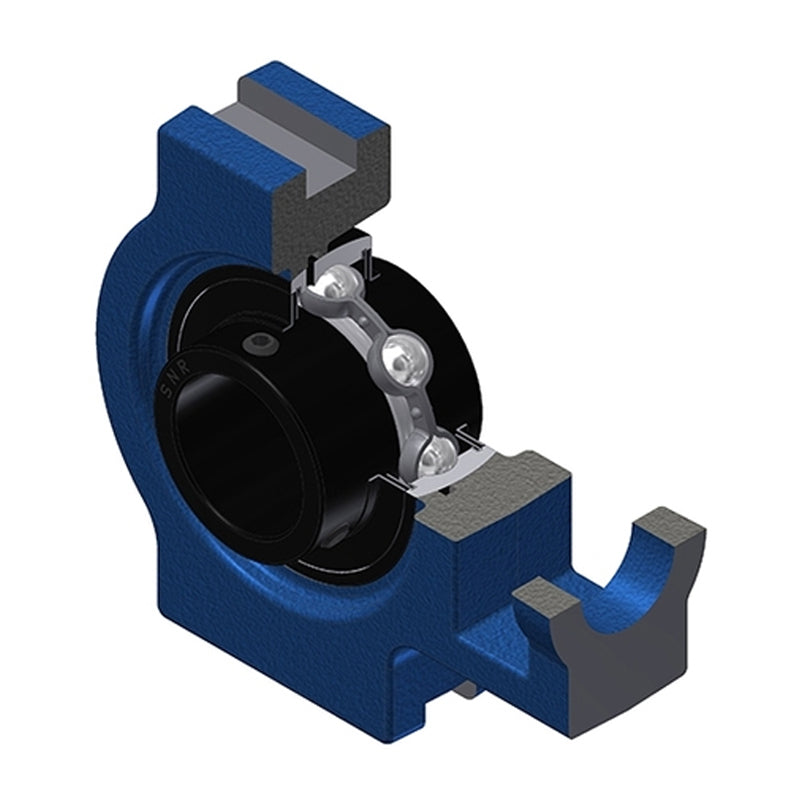

SNR UCT208T20 Metric Cast Iron Take Up Unit with 40mm Bore Bearing Unit Wide Temperature Version - Allow 2-3 Days
SNR UCT208T20 Metric Cast Iron Take Up Unit with 40mm Bore Bearing Unit Wide Temperature Version - Allow 2-3 Days
Regular price
$73.63
ex VAT
Regular price
Sale price
$73.63
ex VAT
In stock
Price Break
3+
$54.86
4+
$52.64
9+
$51.53
19+
$49.87
49+
$48.76
99+
$45.99
499+
$38.79
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 49mm |
| A1 | 16mm |
| A2 | 33mm |
| B | 49.2mm |
| H | 114mm |
| H1 | 102mm |
| H2 | 83mm |
| L | 144mm |
| L1 | 88mm |
| L2 | 16mm |
| L3 | 83mm |
| N | 29mm |
| N1 | 19mm |
| N2 | 49mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Mass | 2.34 kg |
