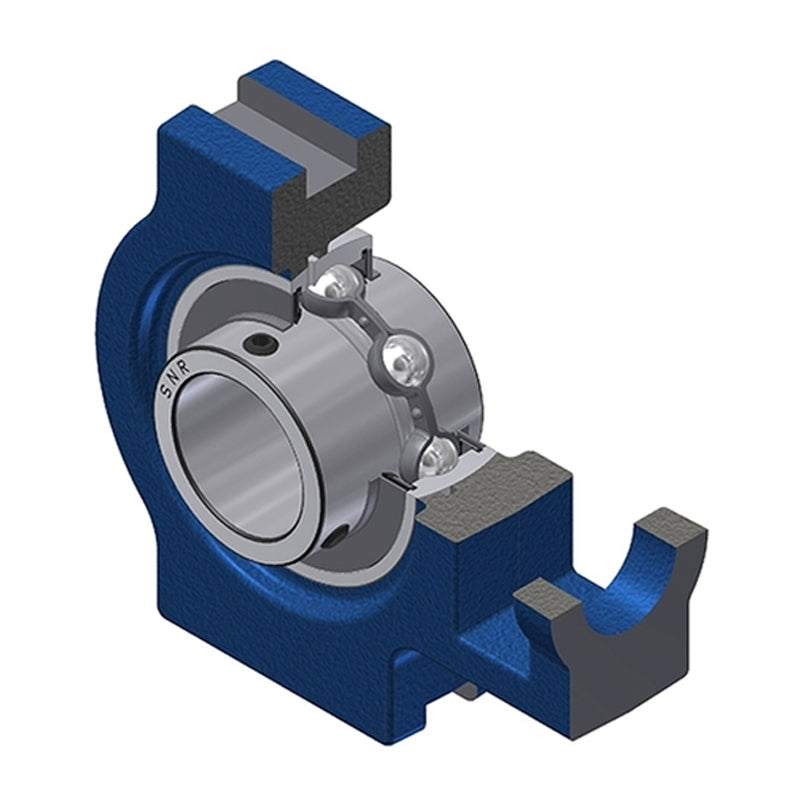

• SNR UCT209-28 Imperial Cast Iron Take Up Unit with 1-3/4 inch Bore Bearing Unit - Allow 2-3 Days
  • SNR
1 2

SKU: UCT209-28-SNR

SNR UCT209-28 Imperial Cast Iron Take Up Unit with 1-3/4 inch Bore Bearing Unit - Allow 2-3 Days

SNR UCT209-28 Imperial Cast Iron Take Up Unit with 1-3/4 inch Bore Bearing Unit - Allow 2-3 Days
$58.91 ex VAT
$58.91 ex VAT
Sale Sold out

In stock

Price Break
3+ $39.46
4+ $37.25
9+ $36.80
19+ $36.36
49+ $35.91
99+ $35.47
499+ $33.25
999+ $32.81
1999+ $32.37
2999+ $31.92
4999+ $31.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
44.45mm = 1.75 (1-3/4) inch
Style:
UCT
Technical
--- Dimensions
Shaft diameter d 1-3/4 inch
A 49mm
A1 16mm
A2 35mm
B 49.2mm
H 117mm
H1 102mm
H2 83mm
L 144mm
L1 87mm
L2 16mm
L3 83mm
N 29mm
N1 19mm
N2 49mm
S 19mm
G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 2.4 kg
