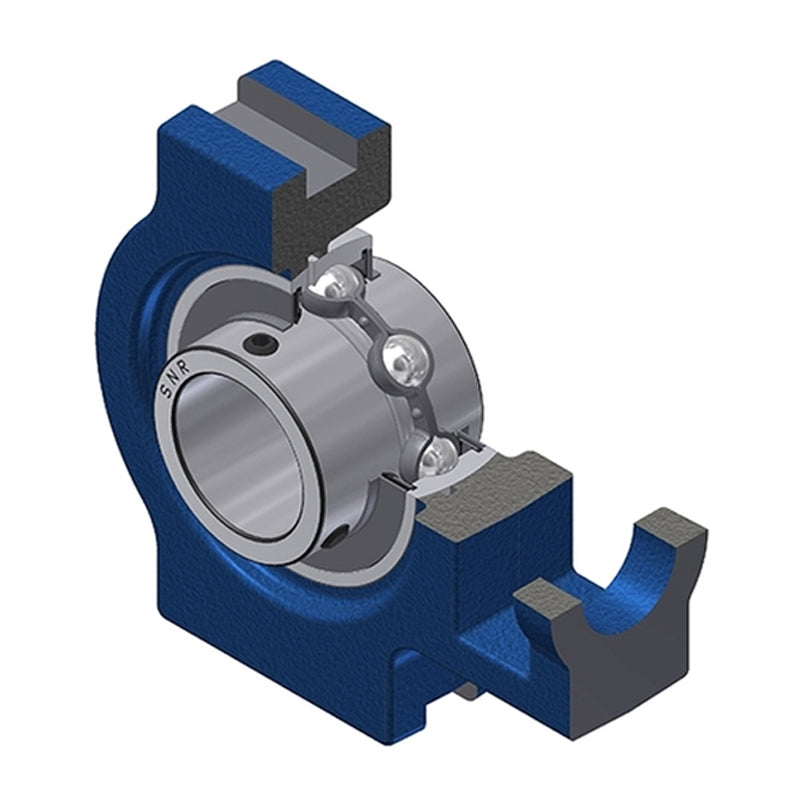

• SNR UCT210-31 Imperial Cast Iron Take Up Unit with 1-15/16 inch Bore Bearing Unit - Allow 2-3 Days
  • SNR
1 2

SKU: UCT210-31-SNR

SNR UCT210-31 Imperial Cast Iron Take Up Unit with 1-15/16 inch Bore Bearing Unit - Allow 2-3 Days

SNR UCT210-31 Imperial Cast Iron Take Up Unit with 1-15/16 inch Bore Bearing Unit - Allow 2-3 Days
$66.59 ex VAT
$66.59 ex VAT
Sale Sold out

In stock

Price Break
3+ $44.61
4+ $42.10
9+ $41.60
19+ $41.10
49+ $40.60
99+ $40.10
499+ $37.59
999+ $37.09
1999+ $36.59
2999+ $36.09
4999+ $35.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
49.21mm = 1.937 (1-15/16) inch
Style:
UCT
Technical
--- Dimensions
Shaft diameter d 1-15/16 inch
A 49mm
A1 16mm
A2 37mm
B 51.6mm
H 117mm
H1 102mm
H2 83mm
L 149mm
L1 90mm
L2 16mm
L3 86mm
N 29mm
N1 19mm
N2 49mm
S 19mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 2.52 kg
