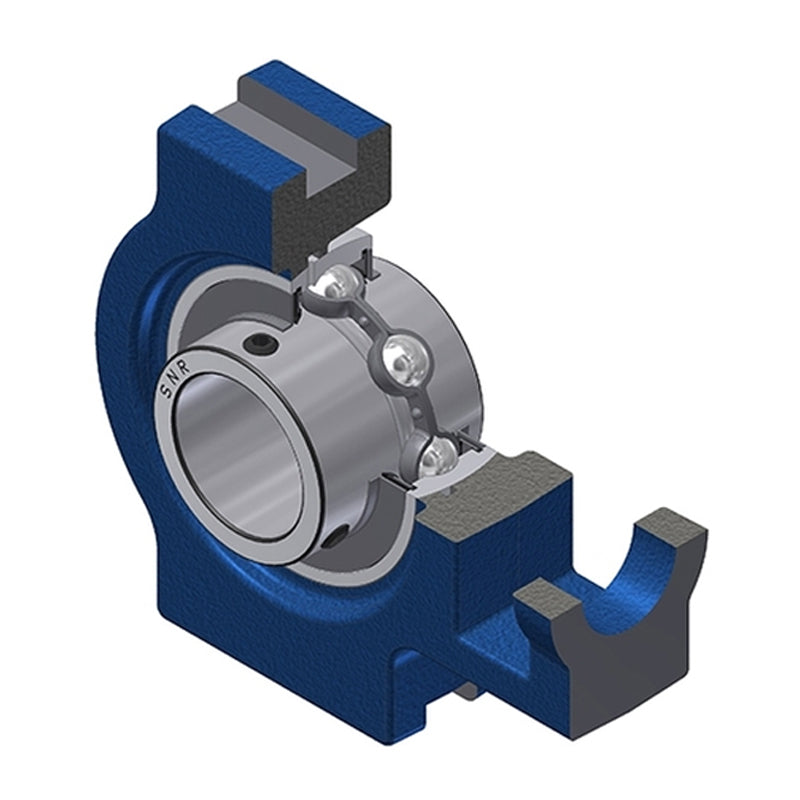

• SNR UCT210 Metric Cast Iron Take Up Unit with 50mm Bore Bearing Unit
  • SNR
1 2

SKU: UCT210-SNR

SNR UCT210 Metric Cast Iron Take Up Unit with 50mm Bore Bearing Unit

SNR UCT210 Metric Cast Iron Take Up Unit with 50mm Bore Bearing Unit
$64.04 ex VAT
$64.04 ex VAT
Sale Sold out

In stock

Price Break
3+ $42.89
4+ $40.48
9+ $40.00
19+ $39.52
49+ $39.04
99+ $38.56
499+ $36.15
999+ $35.66
1999+ $35.18
2999+ $34.70
4999+ $33.74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
UCT
Technical
--- Dimensions
Shaft diameter d 50mm
A 49mm
A1 16mm
A2 37mm
B 51.6mm
H 117mm
H1 102mm
H2 83mm
L 149mm
L1 90mm
L2 16mm
L3 86mm
N 29mm
N1 19mm
N2 49mm
S 19mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 2.5 kg
