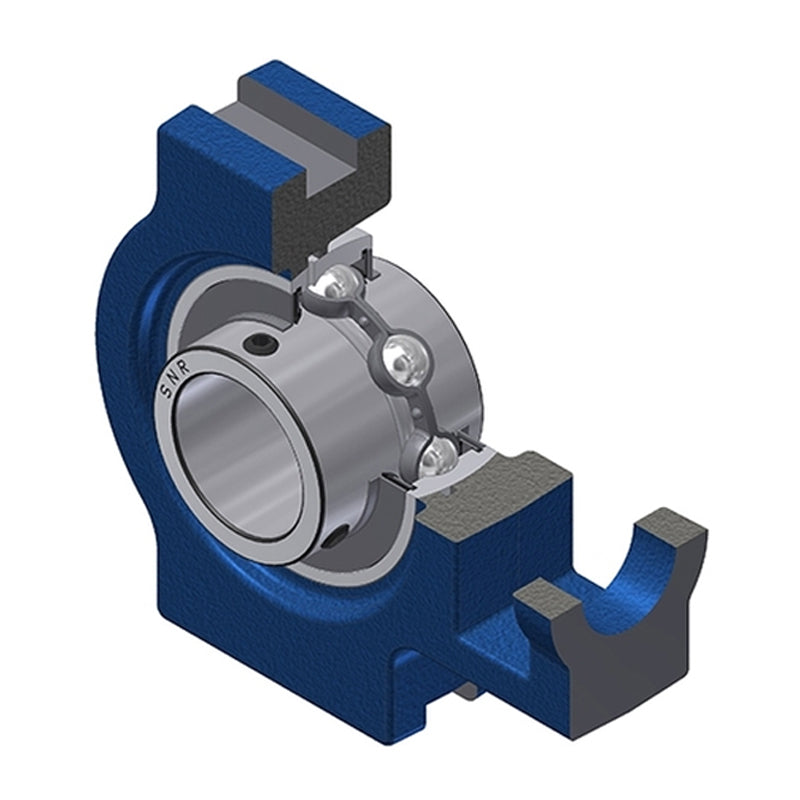

• SNR UCT210N Metric Cast Iron Take Up Unit with 50mm Bore Bearing Unit - Allow 2-3 Days
  • SNR
1 2

SKU: UCT210N-SNR

SNR UCT210N Metric Cast Iron Take Up Unit with 50mm Bore Bearing Unit - Allow 2-3 Days

SNR UCT210N Metric Cast Iron Take Up Unit with 50mm Bore Bearing Unit - Allow 2-3 Days
$72.79 ex VAT
$72.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $48.76
4+ $46.02
9+ $45.47
19+ $44.92
49+ $44.38
99+ $43.83
499+ $41.09
999+ $40.54
1999+ $39.99
2999+ $39.44
4999+ $38.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
UCT
Technical

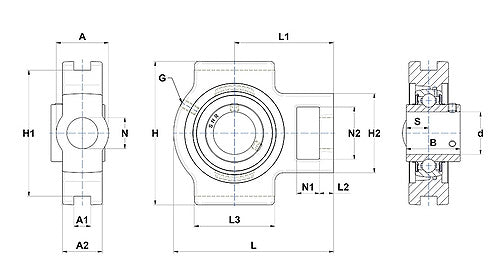

--- Dimensions
Shaft diameter d 50mm
A 49mm
A1 16mm
A2 37mm
B 51.6mm
H 117mm
H1 102mm
H2 83mm
L 149mm
L1 90mm
L2 16mm
L3 86mm
N 29mm
N1 19mm
N2 49mm
S 19mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 2.4 kg
