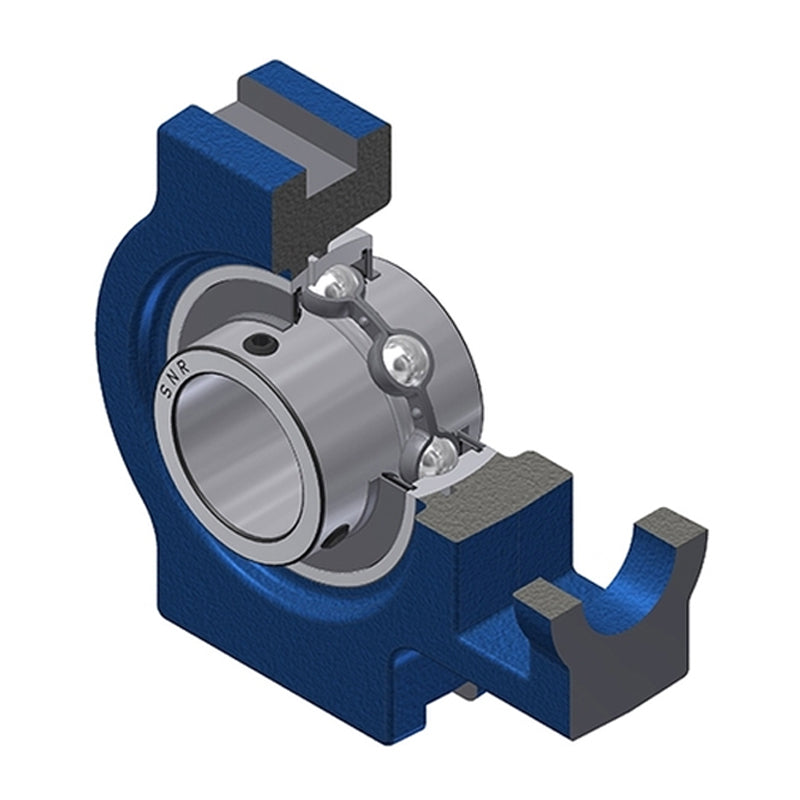

• SNR UCT211-32 Imperial Cast Iron Take Up Unit with 2 inch Bore Bearing Unit - Allow 2-3 Days
  • SNR
1 2

SKU: UCT211-32-SNR

SNR UCT211-32 Imperial Cast Iron Take Up Unit with 2 inch Bore Bearing Unit - Allow 2-3 Days

SNR UCT211-32 Imperial Cast Iron Take Up Unit with 2 inch Bore Bearing Unit - Allow 2-3 Days
$82.18 ex VAT
$82.18 ex VAT
Sale Sold out

In stock

Price Break
3+ $55.05
4+ $51.96
9+ $51.34
19+ $50.72
49+ $50.10
99+ $49.48
499+ $46.39
999+ $45.77
1999+ $45.15
2999+ $44.53
4999+ $43.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
50.8mm = 2 Inch
Style:
UCT
Technical
--- Dimensions
Shaft diameter d 2 inch
A 64mm
A1 22mm
A2 38mm
B 55.6mm
H 146mm
H1 130mm
H2 102mm
L 171mm
L1 106mm
L2 19mm
L3 95mm
N 35mm
N1 25mm
N2 64mm
S 22.2mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 4.07 kg
