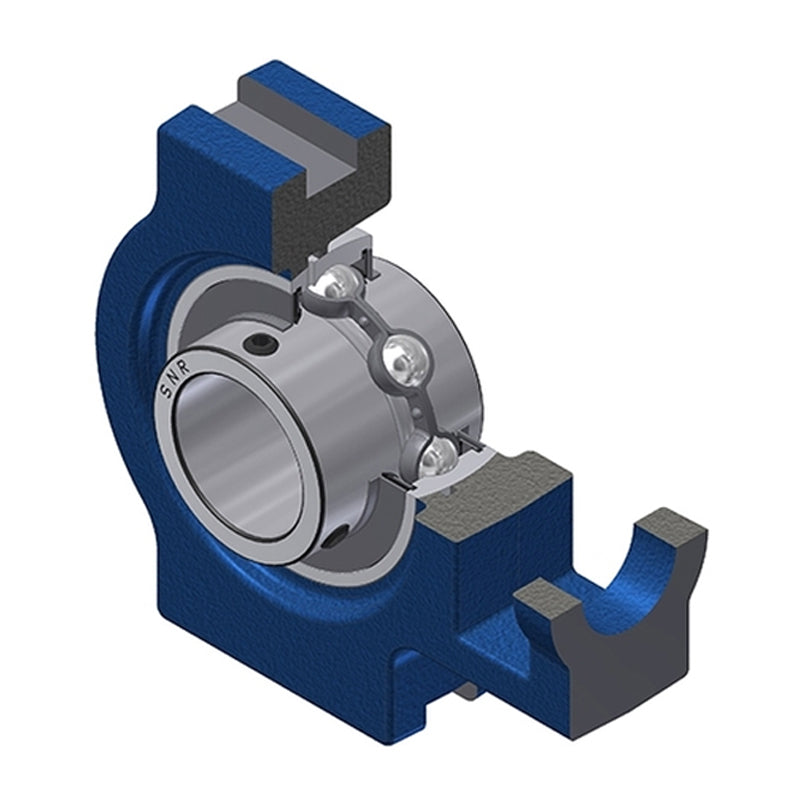

• SNR UCT213-40 Imperial Cast Iron Take Up Unit with 2-1/2 inch Bore Bearing Unit - Allow 2-3 Days
  • SNR
1 2

SKU: UCT213-40-SNR

SNR UCT213-40 Imperial Cast Iron Take Up Unit with 2-1/2 inch Bore Bearing Unit - Allow 2-3 Days

SNR UCT213-40 Imperial Cast Iron Take Up Unit with 2-1/2 inch Bore Bearing Unit - Allow 2-3 Days
$106.73 ex VAT
$106.73 ex VAT
Sale Sold out

In stock

Price Break
3+ $71.49
4+ $67.47
9+ $66.67
19+ $65.87
49+ $65.06
99+ $64.26
499+ $60.24
999+ $59.44
1999+ $58.64
2999+ $57.83
4999+ $56.23

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
63.5mm = 2.5 (2-1/2) inch
Style:
UCT
Technical
--- Dimensions
Shaft diameter d 2-1/2 inch
A 70mm
A1 26mm
A2 44mm
B 65.1mm
H 167mm
H1 151mm
H2 111mm
L 224mm
L1 137mm
L2 21mm
L3 121mm
N 41mm
N1 32mm
N2 70mm
S 25.4mm
G M6x1
--- Load rating
Dynamic load C 57.2 kN
Static load C0 40 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 6.84 kg
