• SNR UCT214 Metric Cast Iron Take Up Unit with 70mm Bore Bearing Unit - Allow 2-3 Days
  • SNR
1 2

SKU: UCT214-SNR

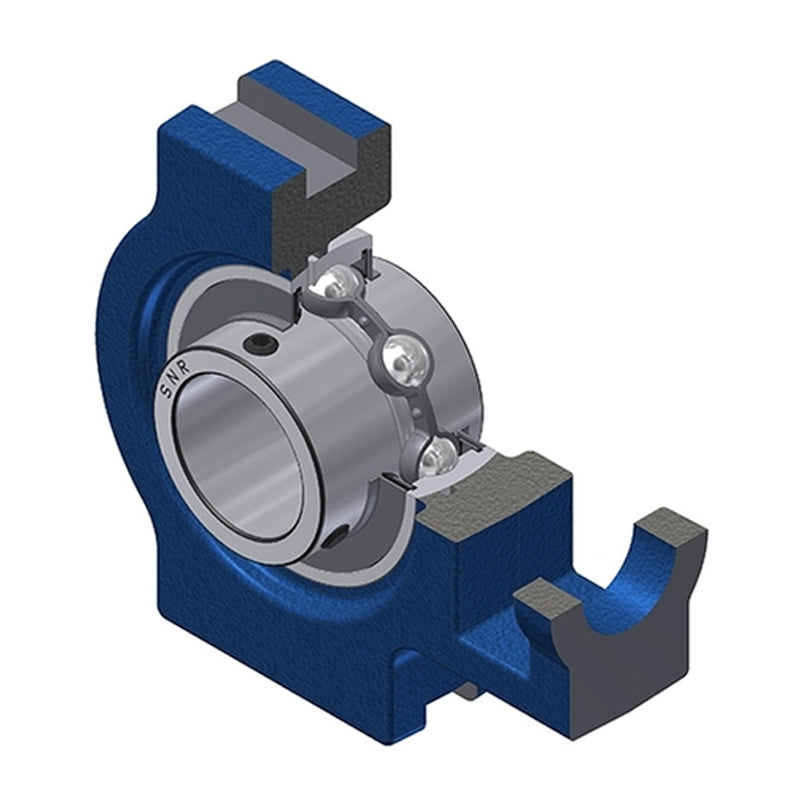

SNR UCT214 Metric Cast Iron Take Up Unit with 70mm Bore Bearing Unit - Allow 2-3 Days

SNR UCT214 Metric Cast Iron Take Up Unit with 70mm Bore Bearing Unit - Allow 2-3 Days
$147.29 ex VAT
$147.29 ex VAT
Sale Sold out

In stock

Price Break
3+ $98.66
4+ $93.12
9+ $92.01
19+ $90.90
49+ $89.79
99+ $88.68
499+ $83.14
999+ $82.03
1999+ $80.92
2999+ $79.81
4999+ $77.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
70mm
Style:
UCT
Technical
--- Dimensions
Shaft diameter d 70mm
A 70mm
A1 26mm
A2 46mm
B 74.6mm
H 167mm
H1 151mm
H2 111mm
L 224mm
L1 137mm
L2 21mm
L3 121mm
N 41mm
N1 32mm
N2 70mm
S 30.2mm
G M6x1
--- Load rating
Dynamic load C 62 kN
Static load C0 45 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 6.85 kg
