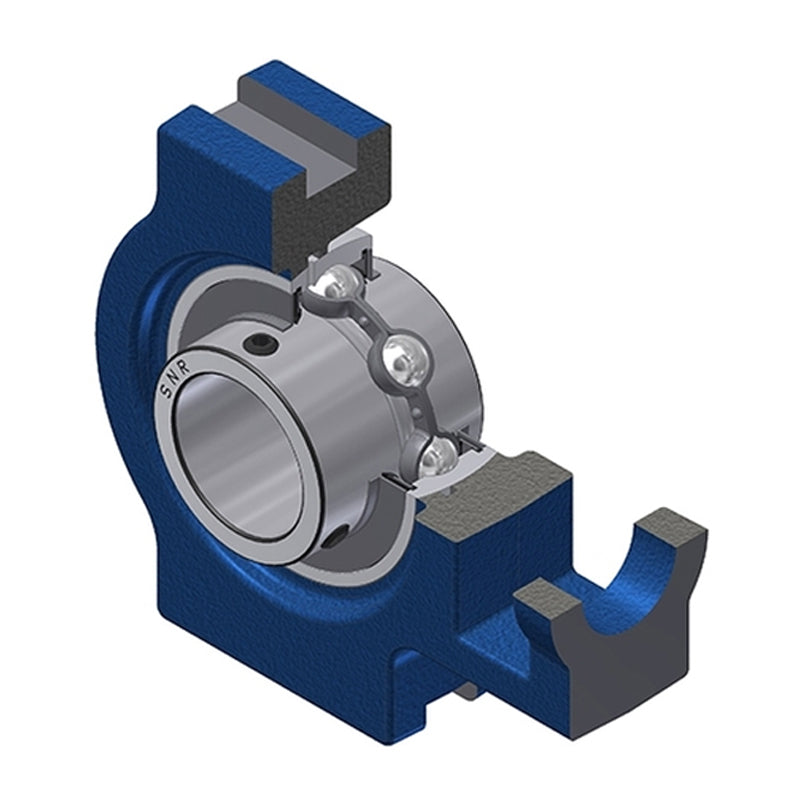

• SNR UCT215-47 Imperial Cast Iron Take Up Unit with 2-15/16 inch Bore Bearing Unit - Allow 2-3 Days
  • SNR
1 2

SKU: UCT215-47-SNR

SNR UCT215-47 Imperial Cast Iron Take Up Unit with 2-15/16 inch Bore Bearing Unit - Allow 2-3 Days

SNR UCT215-47 Imperial Cast Iron Take Up Unit with 2-15/16 inch Bore Bearing Unit - Allow 2-3 Days
$183.57 ex VAT
$183.57 ex VAT
Sale Sold out

In stock

Price Break
3+ $122.96
4+ $116.05
9+ $114.67
19+ $113.29
49+ $111.91
99+ $110.53
499+ $103.62
999+ $102.24
1999+ $100.86
2999+ $99.47
4999+ $96.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
74.61mm = 2.937 (2-15/16) inch
Style:
UCT
Technical
--- Dimensions
Shaft diameter d 2-15/16 inch
A 70mm
A1 26mm
A2 48mm
B 77.8mm
H 167mm
H1 151mm
H2 111mm
L 232mm
L1 140mm
L2 21mm
L3 121mm
N 41mm
N1 32mm
N2 70mm
S 33.3mm
G M10x1
--- Load rating
Dynamic load C 66 kN
Static load C0 49.5 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 7.3 kg
