• NTN UCT216D1 Metric Cast Iron Take Up Unit with 80mm Bore Bearing Unit - Allow 2-3 Days
1 1

SKU: UCT216D1-NTN

NTN UCT216D1 Metric Cast Iron Take Up Unit with 80mm Bore Bearing Unit - Allow 2-3 Days

NTN UCT216D1 Metric Cast Iron Take Up Unit with 80mm Bore Bearing Unit - Allow 2-3 Days
$215.46 ex VAT
$215.46 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
80mm
Style:
UCT
Technical

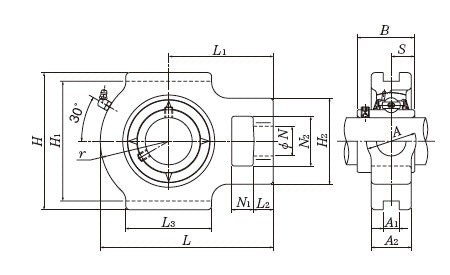

--- Dimensions
Shaft diameter 80mm
N<sub>1</sub> 32mm
L<sub>2</sub> 23mm
H<sub>2</sub> 111mm
N<sub>2</sub> 70mm
N 41mm
L<sub>3</sub> 121mm
A<sub>1</sub> 26mm
H<sub>1</sub> 165mm
H 184mm
L 235mm
A<sub>2</sub> 51mm
A 70mm
r 95mm
L<sub>1</sub> 140mm
B 82.6mm
S 33.3mm
--- Load rating
Dynamic load C<sub>r</sub> 80.5 kN
Static load C<sub>0r</sub> 53 kN
Fatigue load limit C<sub>u</sub> 3.95 kN
--- Unit information
Mass 8.2 kg
