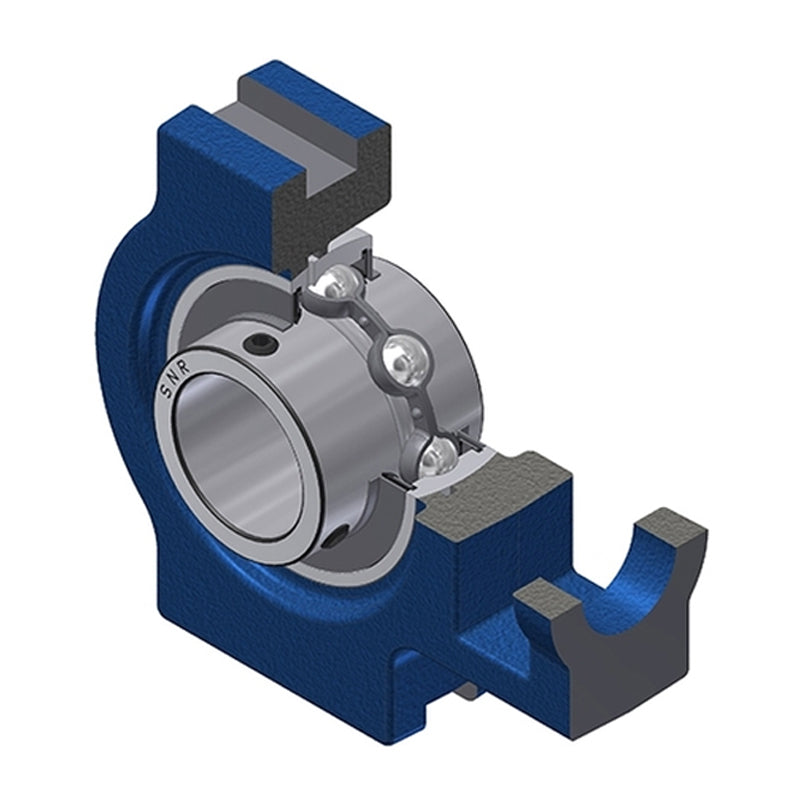

• SNR UCT217 Metric Cast Iron Take Up Unit with 85mm Bore Bearing Unit - Allow 2-3 Days
  • SNR
1 2

SKU: UCT217-SNR

SNR UCT217 Metric Cast Iron Take Up Unit with 85mm Bore Bearing Unit - Allow 2-3 Days

SNR UCT217 Metric Cast Iron Take Up Unit with 85mm Bore Bearing Unit - Allow 2-3 Days
$239.35 ex VAT
$239.35 ex VAT
Sale Sold out

In stock

Price Break
3+ $160.33
4+ $151.32
9+ $149.52
19+ $147.72
49+ $145.92
99+ $144.11
499+ $135.11
999+ $133.31
1999+ $131.50
2999+ $129.70
4999+ $126.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
85mm
Style:
UCT
Technical

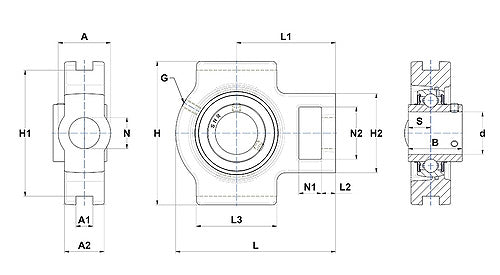

--- Dimensions
Shaft diameter d 85mm
A 73mm
A1 30mm
A2 54mm
B 85.7mm
H 198mm
H1 173mm
H2 124mm
L 260mm
L1 162mm
L2 29mm
L3 157mm
N 48mm
N1 38mm
N2 73mm
S 34.1mm
G M10x1
--- Load rating
Dynamic load C 83.2 kN
Static load C0 63.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 10.78 kg
