SKU: UCT305-16

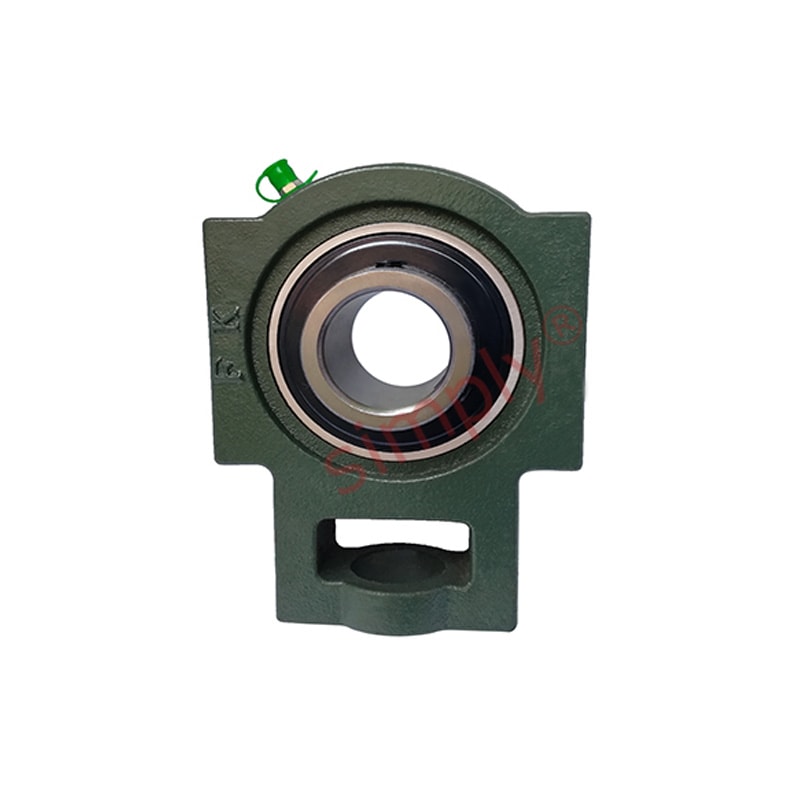

UCT305-16 Imperial Cast Iron Take Up Unit Housing with 1 inch Bore Insert - Allow 2-3 Days
UCT305-16 Imperial Cast Iron Take Up Unit Housing with 1 inch Bore Insert - Allow 2-3 Days
Regular price
$73.53
ex VAT
Regular price
Sale price
$73.53
ex VAT
In stock
Price Break
3+
$54.78
4+
$52.56
9+
$51.46
19+
$49.80
49+
$48.69
99+
$45.92
499+
$38.73
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- UCT
Technical
Technical

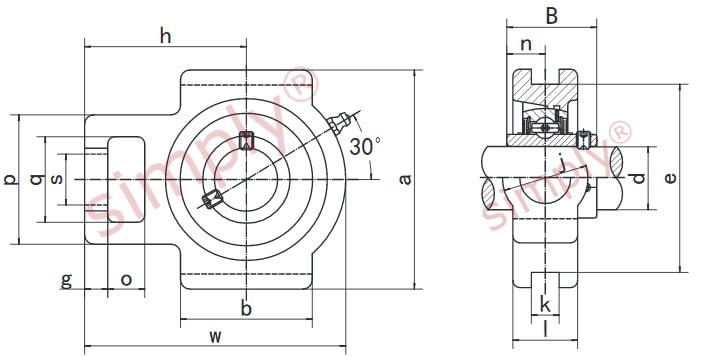

| d | 1 inch |
|---|---|
| o | 5/8 inch |
| g | 9/16 inch |
| p | 2-7/16 inch |
| q | 1-13/32 inch |
| s | 1-1/32 inch |
| b | 2-9/16 inch |
| k | 0.472 inch |
| e | 3-5/32 inch |
| a | 3-1/2 inch |
| w | 4-13/16 inch |
| j | 1-13/32 inch |
| l | 1-1/32 inch |
| h | 3 inch |
| B | 1.4961 inch |
| n | 0.591 inch |
| Bearing no | UC305-16 |
| Housing no | T305 |
| Weight | 1.2 kg |
