SKU: UCT306

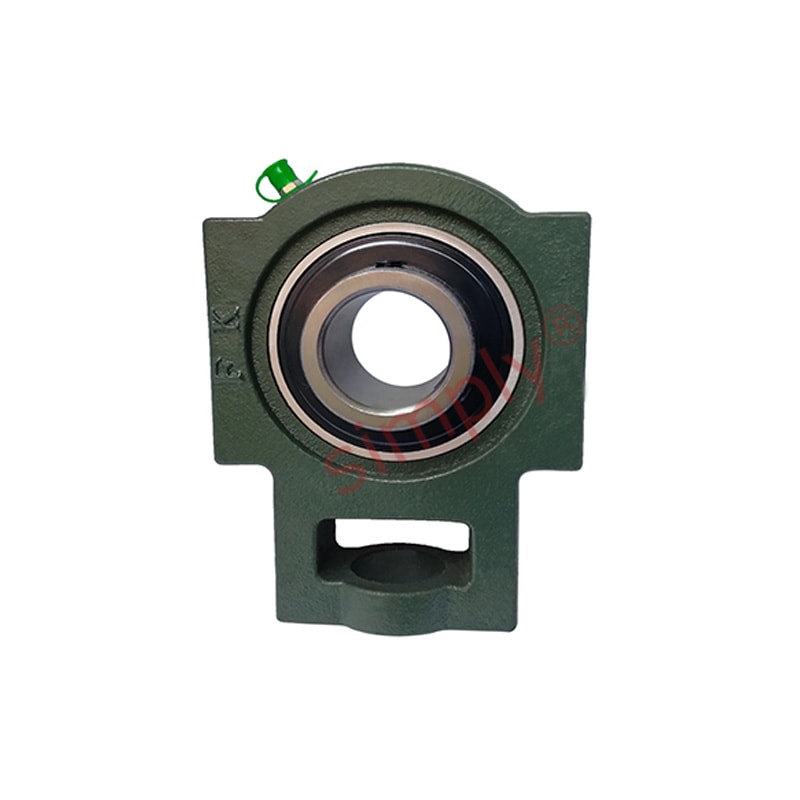

UCT306 Metric Cast Iron Take Up Unit Housing with 30mm Bore Insert
UCT306 Metric Cast Iron Take Up Unit Housing with 30mm Bore Insert
Regular price
$31.90
ex VAT
Regular price
Sale price
$31.90
ex VAT
In stock
Price Break
3+
$21.37
4+
$20.17
9+
$19.93
19+
$19.69
49+
$19.45
99+
$19.21
499+
$18.01
999+
$17.77
1999+
$17.53
2999+
$17.29
4999+
$16.81
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- UCT
Technical
Technical
| d | 30mm |
|---|---|
| o | 18mm |
| g | 16mm |
| p | 70mm |
| q | 41mm |
| s | 28mm |
| b | 74mm |
| k | 16mm |
| e | 90mm |
| a | 100mm |
| w | 137mm |
| j | 41mm |
| l | 28mm |
| h | 85mm |
| B | 43mm |
| n | 17mm |
| Bearing no | UC306 |
| Housing no | T306 |
| Weight | 1.7 kg |
