SKU: UCT308

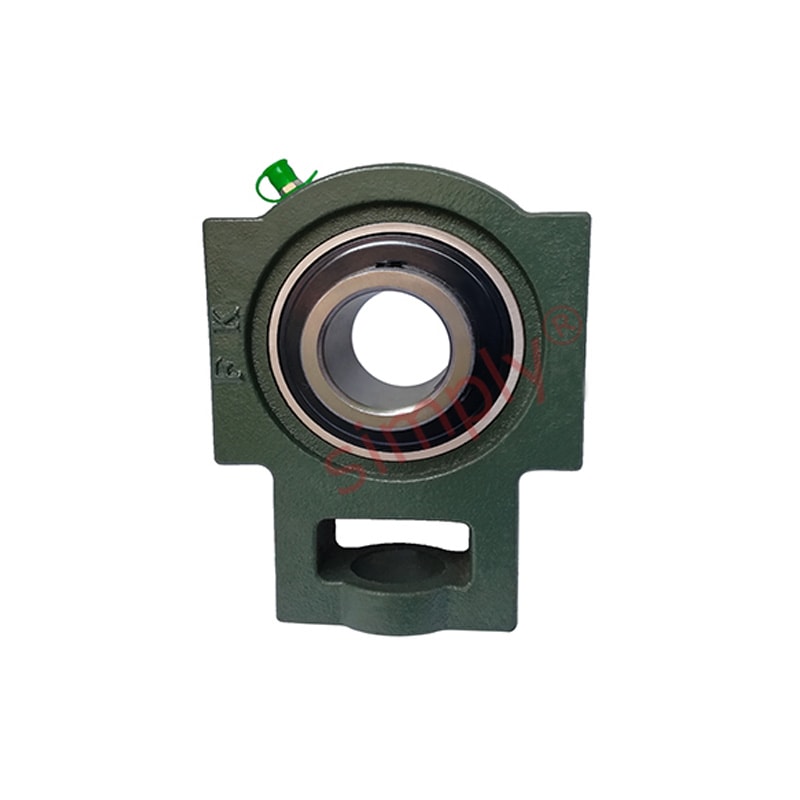

UCT308 Metric Cast Iron Take Up Unit Housing with 40mm Bore Insert
UCT308 Metric Cast Iron Take Up Unit Housing with 40mm Bore Insert
Regular price
$46.33
ex VAT
Regular price
Sale price
$46.33
ex VAT
In stock
Price Break
3+
$31.03
4+
$29.28
9+
$28.93
19+
$28.59
49+
$28.24
99+
$27.89
499+
$26.15
999+
$25.80
1999+
$25.45
2999+
$25.10
4999+
$24.40
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- UCT
Technical
Technical
| d | 40mm |
|---|---|
| o | 22mm |
| g | 19mm |
| p | 83mm |
| q | 50mm |
| s | 32mm |
| b | 89mm |
| k | 18mm |
| e | 112mm |
| a | 124mm |
| w | 162mm |
| j | 50mm |
| l | 34mm |
| h | 100mm |
| B | 52mm |
| n | 19mm |
| Bearing no | UC308 |
| Housing no | T308 |
| Weight | 2.9 kg |
