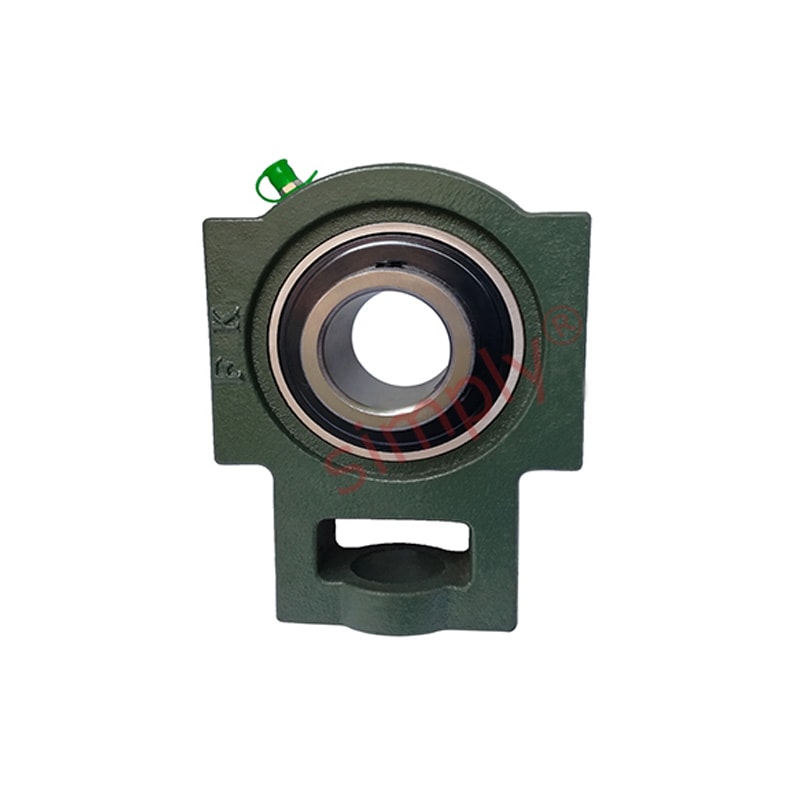

UCT309 Metric Cast Iron Take Up Unit Housing with 45mm Bore Insert
UCT309 Metric Cast Iron Take Up Unit Housing with 45mm Bore Insert
Regular price
$57.27
ex VAT
Regular price
Sale price
$57.27
ex VAT
In stock
Price Break
3+
$38.36
4+
$36.20
9+
$35.77
19+
$35.34
49+
$34.91
99+
$34.48
499+
$32.32
999+
$31.89
1999+
$31.46
2999+
$31.03
4999+
$30.17
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- UCT
Technical
Technical
| d | 45mm |
|---|---|
| o | 24mm |
| g | 20mm |
| p | 90mm |
| q | 55mm |
| s | 34mm |
| b | 97mm |
| k | 18mm |
| e | 125mm |
| a | 138mm |
| w | 178mm |
| j | 55mm |
| l | 38mm |
| h | 110mm |
| B | 57mm |
| n | 22mm |
| Bearing no | UC309 |
| Housing no | T309 |
| Weight | 4 kg |
