SKU: UCT311

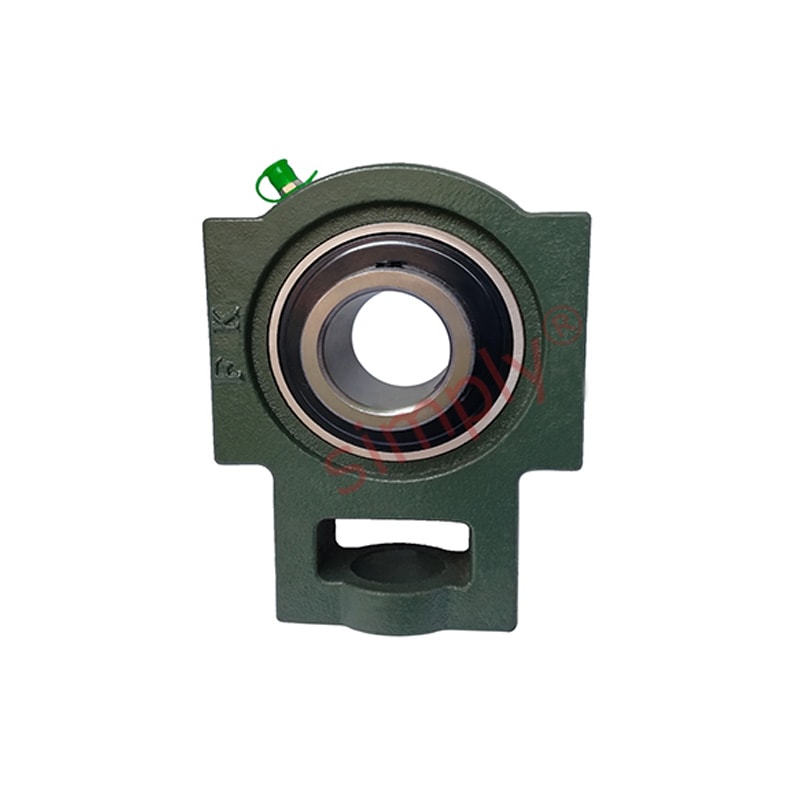

UCT311 Metric Cast Iron Take Up Unit Housing with 55mm Bore Insert
UCT311 Metric Cast Iron Take Up Unit Housing with 55mm Bore Insert
Regular price
$74.31
ex VAT
Regular price
Sale price
$74.31
ex VAT
In stock
Price Break
3+
$49.78
4+
$46.98
9+
$46.42
19+
$45.86
49+
$45.30
99+
$44.74
499+
$41.95
999+
$41.39
1999+
$40.83
2999+
$40.27
4999+
$39.15
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Style:
- UCT
Technical
Technical
| d | 55mm |
|---|---|
| o | 29mm |
| g | 23mm |
| p | 105mm |
| q | 66mm |
| s | 39mm |
| b | 115mm |
| k | 22mm |
| e | 150mm |
| a | 163mm |
| w | 207mm |
| j | 66mm |
| l | 44mm |
| h | 127mm |
| B | 66mm |
| n | 25mm |
| Bearing no | UC311 |
| Housing no | T311 |
| Weight | 6.2 kg |
