SKU: UCT311-32

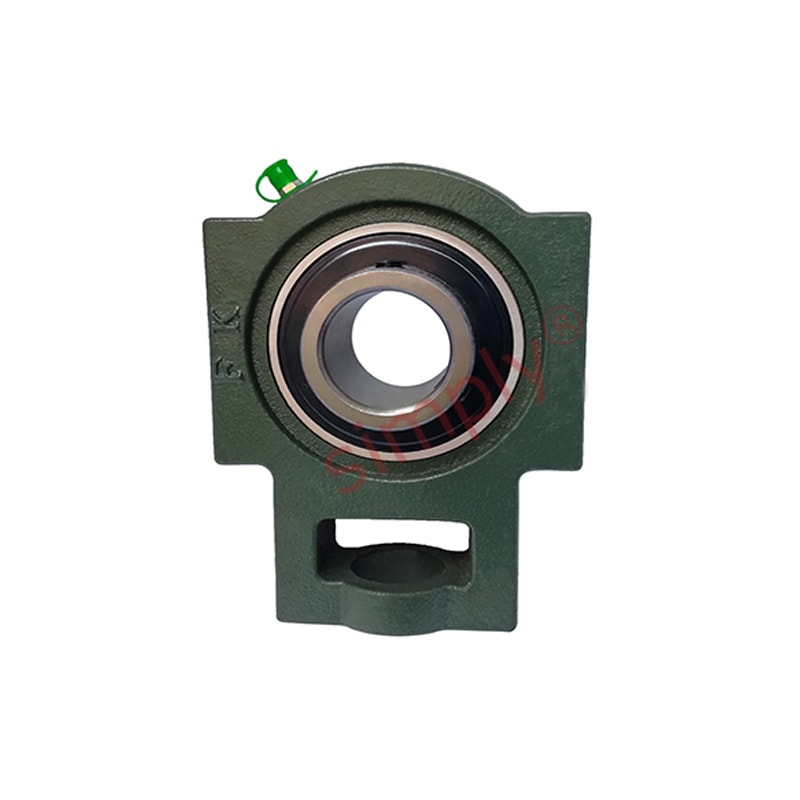

UCT311-32 Imperial Cast Iron Take Up Unit Housing with 2 inch Bore Insert
UCT311-32 Imperial Cast Iron Take Up Unit Housing with 2 inch Bore Insert
Regular price
$79.12
ex VAT
Regular price
Sale price
$79.12
ex VAT
In stock
Price Break
3+
$53.00
4+
$50.02
9+
$49.42
19+
$48.83
49+
$48.23
99+
$47.64
499+
$44.66
999+
$44.07
1999+
$43.47
2999+
$42.87
4999+
$41.68
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- UCT
Technical
Technical
| d | 2 inch |
|---|---|
| o | 1-5/32 inch |
| g | 29/32 inch |
| p | 4-1/8 inch |
| q | 2-19/32 inch |
| s | 1-17/32 inch |
| b | 4-17/32 inch |
| k | 0.866 inch |
| e | 5-29/32 inch |
| a | 6-13/32 inch |
| w | 8-5/32 inch |
| j | 2-19/32 inch |
| l | 1-23/32 inch |
| h | 5 inch |
| B | 2.5984 inch |
| n | 0.984 inch |
| Bearing no | UC311-32 |
| Housing no | T311 |
| Weight | 6.2 kg |
