• SNR UCT311 Metric Cast Iron Take Up Unit with 55mm Bore Bearing Unit - Allow 2-3 Days
  • SNR
1 2

SKU: UCT311-SNR

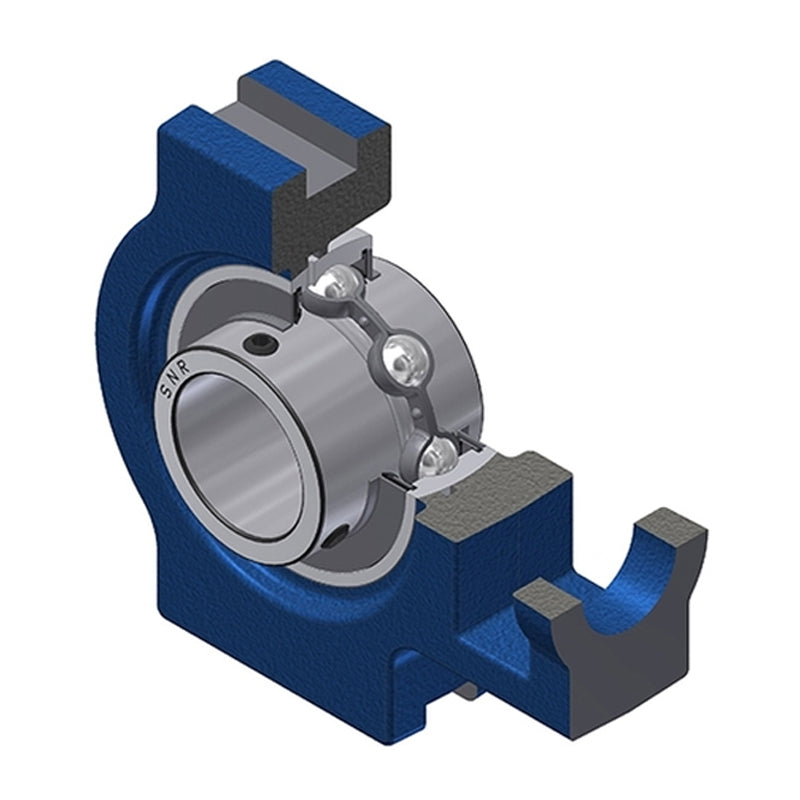

SNR UCT311 Metric Cast Iron Take Up Unit with 55mm Bore Bearing Unit - Allow 2-3 Days

SNR UCT311 Metric Cast Iron Take Up Unit with 55mm Bore Bearing Unit - Allow 2-3 Days
$143.02 ex VAT
$143.02 ex VAT
Sale Sold out

In stock

Price Break
3+ $95.80
4+ $90.42
9+ $89.34
19+ $88.27
49+ $87.19
99+ $86.11
499+ $80.73
999+ $79.65
1999+ $78.58
2999+ $77.50
4999+ $75.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
55mm
Style:
UCT
Technical
--- Dimensions
Shaft diameter d 55mm
A 66mm
A1 22mm
A2 44mm
B 66mm
H 163mm
H1 150mm
H2 105mm
L 207mm
L1 127mm
L2 23mm
L3 115mm
N 39mm
N1 29mm
N2 66mm
S 25mm
G M6x1
--- Load rating
Dynamic load C 71.5 kN
Static load C0 44.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 6.1 kg
