SKU: UCT312

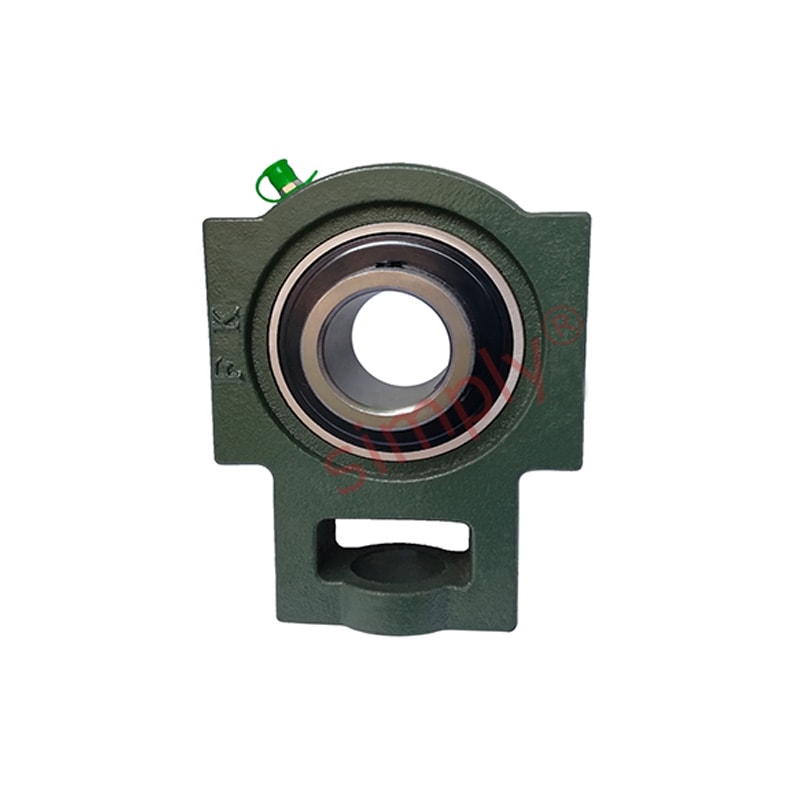

UCT312 Metric Cast Iron Take Up Unit Housing with 60mm Bore Insert
UCT312 Metric Cast Iron Take Up Unit Housing with 60mm Bore Insert
Regular price
$97.07
ex VAT
Regular price
Sale price
$97.07
ex VAT
In stock
Price Break
3+
$65.03
4+
$61.37
9+
$60.64
19+
$59.91
49+
$59.18
99+
$58.45
499+
$54.80
999+
$54.07
1999+
$53.34
2999+
$52.61
4999+
$51.14
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- UCT
Technical
Technical
| d | 60mm |
|---|---|
| o | 31mm |
| g | 25mm |
| p | 113mm |
| q | 71mm |
| s | 41mm |
| b | 123mm |
| k | 22mm |
| e | 160mm |
| a | 178mm |
| w | 220mm |
| j | 71mm |
| l | 46mm |
| h | 135mm |
| B | 71mm |
| n | 26mm |
| Bearing no | UC313 |
| Housing no | T312 |
| Weight | 7.5 kg |
