SKU: UCT314-211D1-NTN

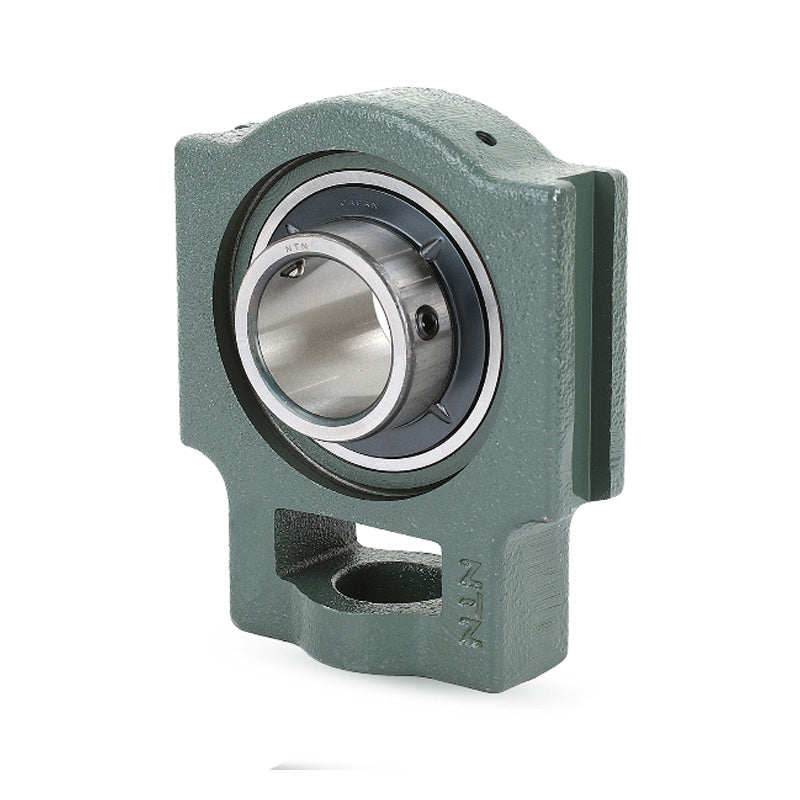

NTN UCT314-211D1 Imperial Cast Iron Take Up Unit with 2-11/16 inch Bore Bearing Unit - Allow 2-3 Days
NTN UCT314-211D1 Imperial Cast Iron Take Up Unit with 2-11/16 inch Bore Bearing Unit - Allow 2-3 Days
Out of stock
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 68.26mm = 2.687 (2-11/16) inch
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2-11/16 inch |
| N<sub>1</sub> | 1-13/32 inch |
| L<sub>2</sub> | 1-1/16 inch |
| H<sub>2</sub> | 5-1/8 inch |
| N<sub>2</sub> | 3-11/32 inch |
| N | 1-13/16 inch |
| L<sub>3</sub> | 5-1/2 inch |
| A<sub>1</sub> | 1.024 inch |
| H<sub>1</sub> | 7-3/32 inch |
| H | 7-15/16 inch |
| L | 9-29/32 inch |
| A<sub>2</sub> | 2-1/16 inch |
| A | 3-17/32 inch |
| r | 3-13/16 inch |
| L<sub>1</sub> | 6-3/32 inch |
| B | 3.0709 inch |
| S | 1.299 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 115 kN |
| Static load C<sub>0r</sub> | 68 kN |
| Fatigue load limit C<sub>u</sub> | 5.1 kN |
| --- | Unit information |
| Mass | 24 lbs |
