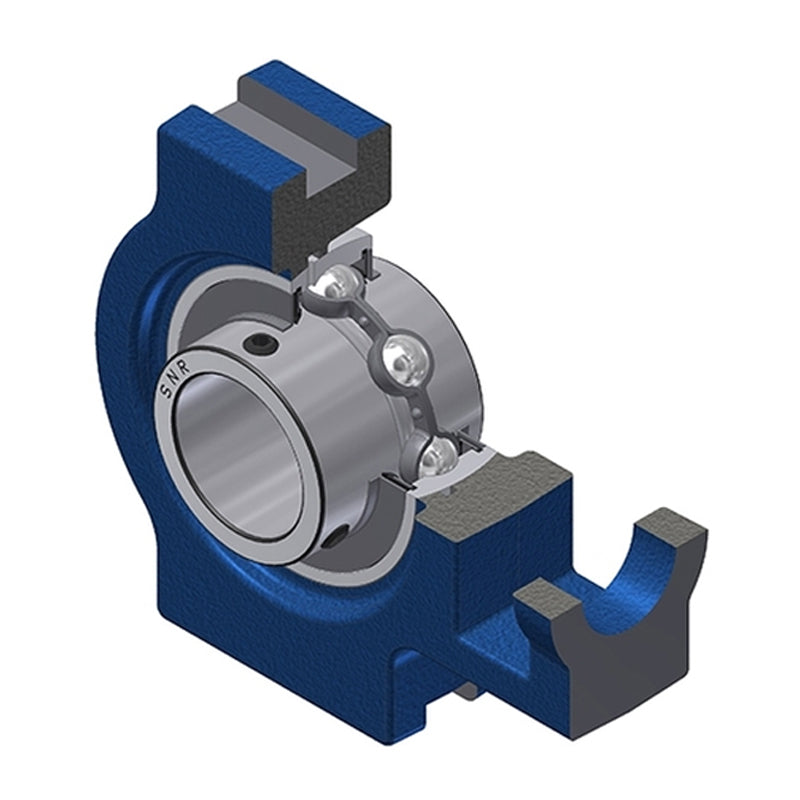

• SNR UCT316 Metric Cast Iron Take Up Unit with 80mm Bore Bearing Unit - Allow 2-3 Days
  • SNR
1 2

SKU: UCT316-SNR

SNR UCT316 Metric Cast Iron Take Up Unit with 80mm Bore Bearing Unit - Allow 2-3 Days

SNR UCT316 Metric Cast Iron Take Up Unit with 80mm Bore Bearing Unit - Allow 2-3 Days
$307.45 ex VAT
$307.45 ex VAT
Sale Sold out

In stock

Price Break
3+ $205.93
4+ $194.37
9+ $192.05
19+ $189.74
49+ $187.42
99+ $185.11
499+ $173.54
999+ $171.23
1999+ $168.91
2999+ $166.60
4999+ $161.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
80mm
Style:
UCT
Technical
--- Dimensions
Shaft diameter d 80mm
A 102mm
A1 30mm
A2 60mm
B 86mm
H 230mm
H1 204mm
H2 150mm
L 282mm
L1 174mm
L2 30mm
L3 160mm
N 53mm
N1 42mm
N2 98mm
S 34mm
G M10x1
--- Load rating
Dynamic load C 122.85 kN
Static load C0 86.5 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 15.97 kg
