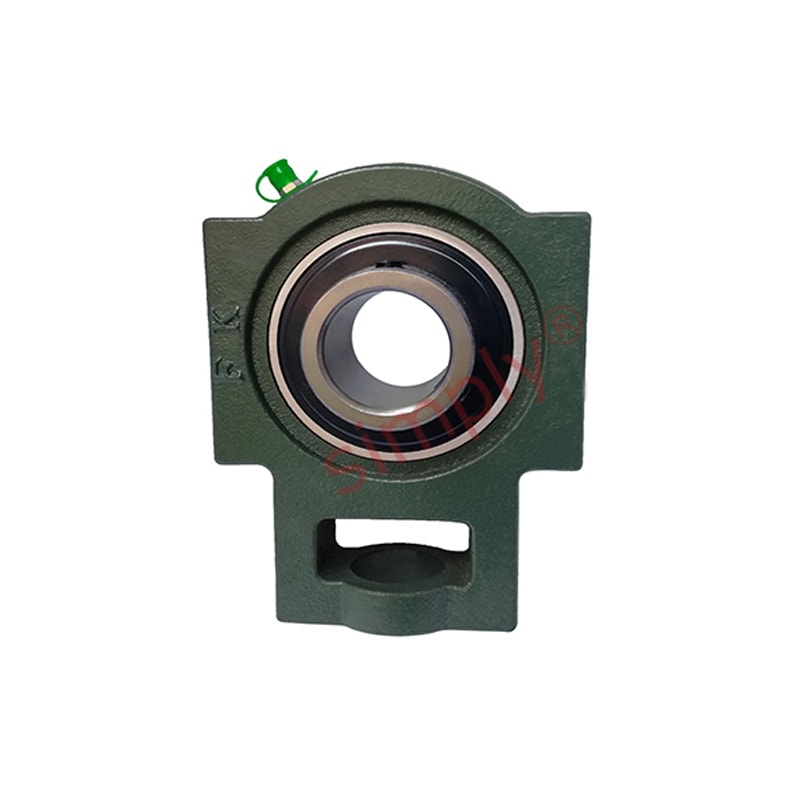

UCT319 Metric Cast Iron Take Up Unit Housing with 95mm Bore Insert
UCT319 Metric Cast Iron Take Up Unit Housing with 95mm Bore Insert
Regular price
$501.38
ex VAT
Regular price
Sale price
$501.38
ex VAT
In stock
Price Break
3+
$335.84
4+
$316.97
9+
$313.20
19+
$309.42
49+
$305.65
99+
$301.88
499+
$283.01
999+
$279.24
1999+
$275.46
2999+
$271.69
4999+
$264.14
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 95mm
- Style:
- UCT
Technical
Technical
| d | 95mm |
|---|---|
| o | 46mm |
| g | 33mm |
| p | 165mm |
| q | 106mm |
| s | 57mm |
| b | 180mm |
| k | 35mm |
| e | 240mm |
| a | 270mm |
| w | 322mm |
| j | 110mm |
| l | 72mm |
| h | 197mm |
| B | 103mm |
| n | 41mm |
| Bearing no | UC319 |
| Housing no | T319 |
| Weight | 24.6 kg |
