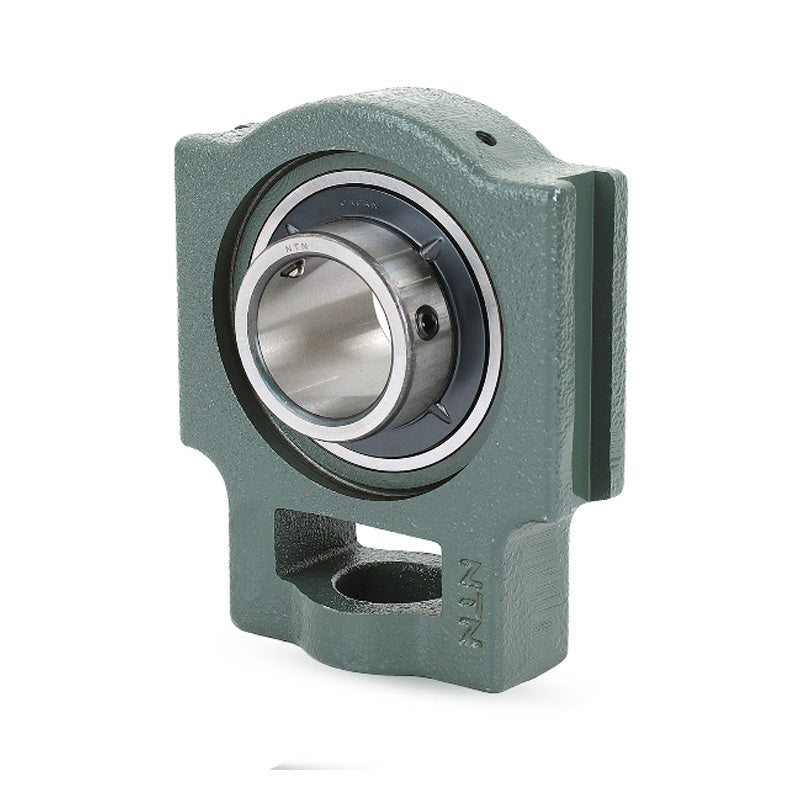

NTN UCT319D1 Metric Cast Iron Take Up Unit with 95mm Bore Bearing Unit - Allow 2-3 Days
NTN UCT319D1 Metric Cast Iron Take Up Unit with 95mm Bore Bearing Unit - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 95mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 95mm |
| N<sub>1</sub> | 46mm |
| L<sub>2</sub> | 33mm |
| H<sub>2</sub> | 165mm |
| N<sub>2</sub> | 106mm |
| N | 57mm |
| L<sub>3</sub> | 180mm |
| A<sub>1</sub> | 35mm |
| H<sub>1</sub> | 240mm |
| H | 270mm |
| L | 322mm |
| A<sub>2</sub> | 72mm |
| A | 110mm |
| r | 125mm |
| L<sub>1</sub> | 197mm |
| B | 103mm |
| S | 41mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 169 kN |
| Static load C<sub>0r</sub> | 119 kN |
| Fatigue load limit C<sub>u</sub> | 7.65 kN |
| --- | Unit information |
| Mass | 24 kg |
