• SNR UCT320 Metric Cast Iron Take Up Unit with 100mm Bore Bearing Unit - Allow 2-3 Days
  • SNR
1 2

SKU: UCT320-SNR

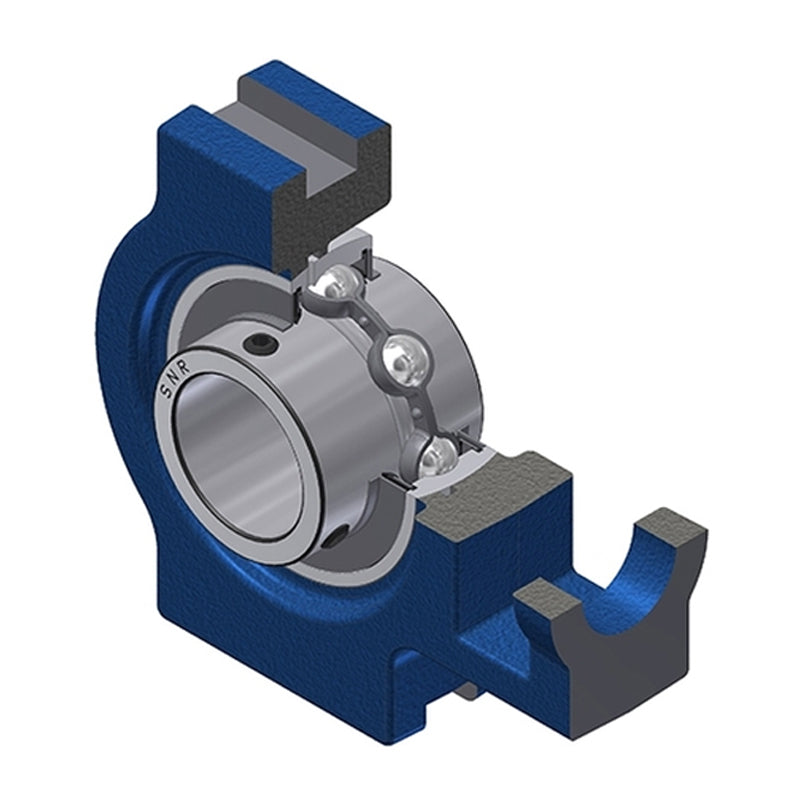

SNR UCT320 Metric Cast Iron Take Up Unit with 100mm Bore Bearing Unit - Allow 2-3 Days

SNR UCT320 Metric Cast Iron Take Up Unit with 100mm Bore Bearing Unit - Allow 2-3 Days
$547.87 ex VAT
$547.87 ex VAT
Sale Sold out

In stock

Price Break
3+ $366.98
4+ $346.36
9+ $342.24
19+ $338.11
49+ $333.99
99+ $329.87
499+ $309.25
999+ $305.13
1999+ $301.00
2999+ $296.88
4999+ $288.63

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
100mm
Style:
UCT
Technical
--- Dimensions
Shaft diameter d 100mm
A 120mm
A1 35mm
A2 75mm
B 108mm
H 290mm
H1 260mm
H2 175mm
L 345mm
L1 210mm
L2 34mm
L3 200mm
N 59mm
N1 48mm
N2 115mm
S 42mm
G M10x1
--- Load rating
Dynamic load C 171.6 kN
Static load C0 140 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 30.6 kg
