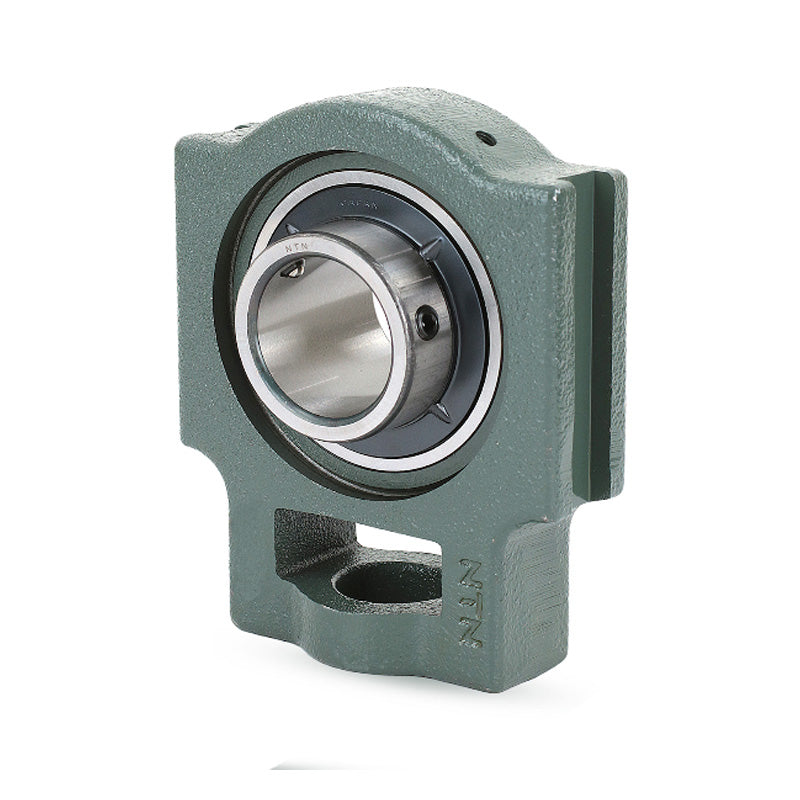

• NTN UCT320D1 Metric Cast Iron Take Up Unit with 100mm Bore Bearing Unit - Allow 2-3 Days
1 1

SKU: UCT320D1-NTN

NTN UCT320D1 Metric Cast Iron Take Up Unit with 100mm Bore Bearing Unit - Allow 2-3 Days

NTN UCT320D1 Metric Cast Iron Take Up Unit with 100mm Bore Bearing Unit - Allow 2-3 Days
$564.31 ex VAT
$564.31 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
100mm
Style:
UCT
Technical
--- Dimensions
Shaft diameter 100mm
N<sub>1</sub> 48mm
L<sub>2</sub> 34mm
H<sub>2</sub> 175mm
N<sub>2</sub> 115mm
N 59mm
L<sub>3</sub> 200mm
A<sub>1</sub> 35mm
H<sub>1</sub> 260mm
H 290mm
L 345mm
A<sub>2</sub> 75mm
A 120mm
r 135mm
L<sub>1</sub> 210mm
B 108mm
S 42mm
--- Load rating
Dynamic load C<sub>r</sub> 192 kN
Static load C<sub>0r</sub> 141 kN
Fatigue load limit C<sub>u</sub> 8.75 kN
--- Unit information
Mass 30 kg
